I took a look at residuals from 500 events in Run 19 19.6 GeV data, run 20057003, which is one of the lowest luminosity runs in that dataset as shown by the red markers in this plot of log₁₀(bbcx) vs. unixtime:



With this condition, there may be some SpaceCharge, but it should be pretty small, so I've turned off the corrections for SpaceCharge & GridLeak. For this set of plots, the padrow 40 distortion correction is turned on (this corrects for the electrostatic distortion around the GridLeak wall). And as a reminder, the SectorAlignment distortion correction handles the gating grid plane's displacement in z (with respect to the intended position for a uniform primary drift E field of the TPC) as a consequence of misalignments of the sectors.

Here are the along-the-padrow residuals [cm] vs. padrow (binned by groups of 4 rows) of primary tracks for several conditions. The individual 24 sectors are colored blue (sector 1) through red (sector 24).

alignment params	SectorAlignment distortion correction off	SectorAlignment distortion correction on

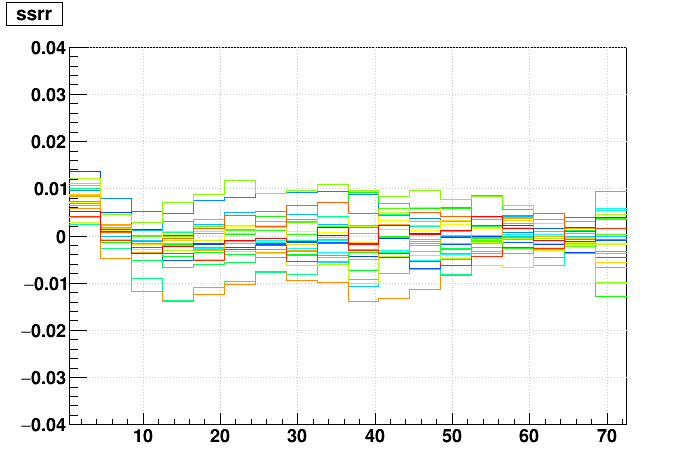

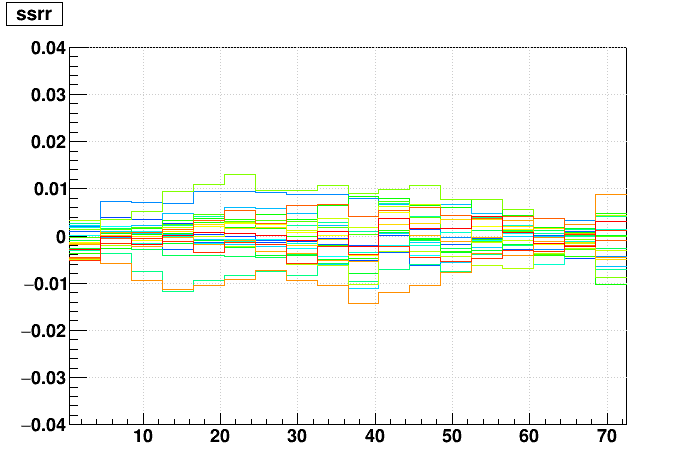

supersector: old inner-to-outer: survey

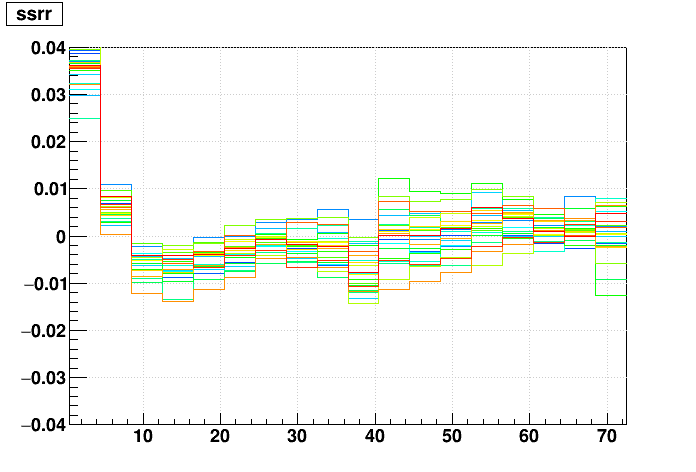

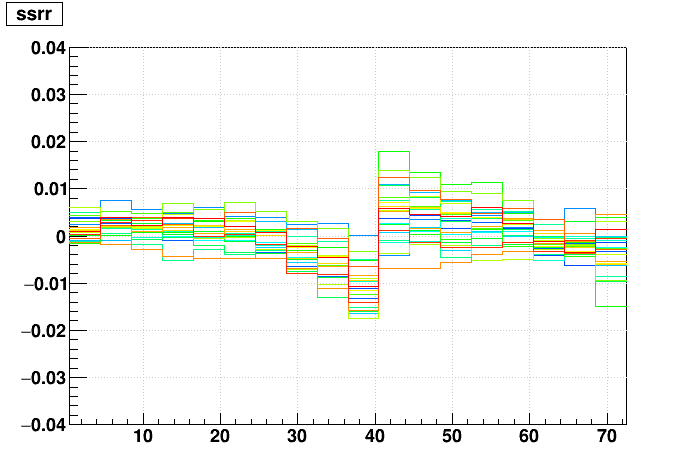

supersector: old inner-to-outer: 2020 calib

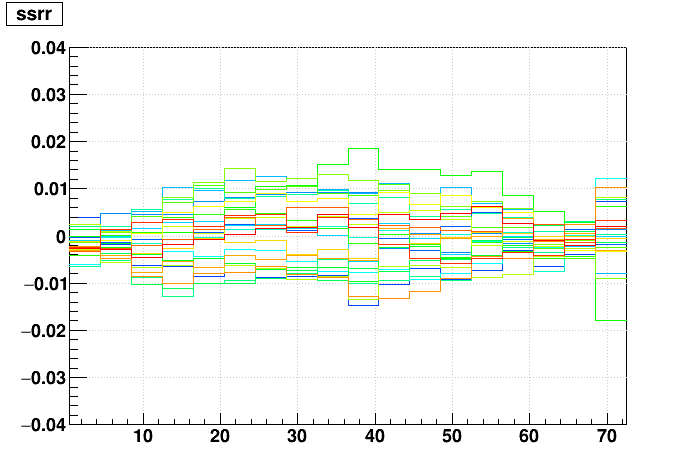

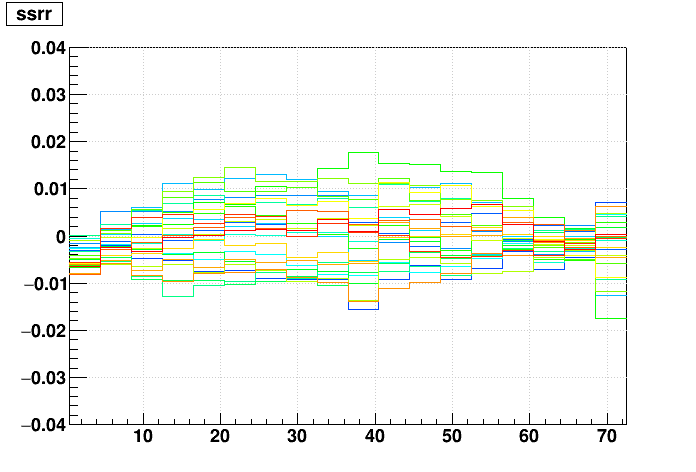

supersector: 2019 calib inner-to-outer: survey

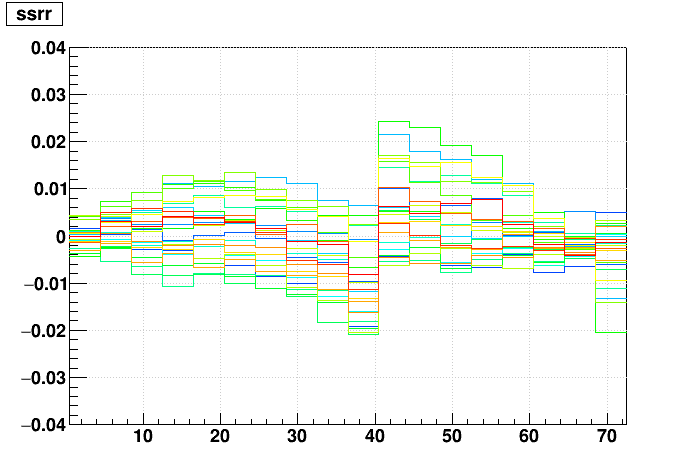

supersector: 2020 calib inner-to-outer: 2020 calib

Notes:
2019 calib: by Yuri, entered in database in 2019
2019 calib: by Irakli, entered in database in 2020

-Gene
