Related inks:

• 3x3 clusering and gamma maker fix
• Alice' study with QCD sample
• QCD and gamma-jet data samples are described here
  (filter parameters are listed below)

Number of generated events per partnic pt bin:
gamma-jet: 25K
QCD(2-4): 50K
QCD(4-55): 25K

Pythia filter configuration

StEemcGammaFilter:: running the TEST mode (accepting all events). Set mFilterMode=1 to actually reject events
StEemcGammaFilter:: mConeRadius 0.22 mSeedThreshold 3.8 mClusterThreshold 5 mEtaLow 0.95 mEtaHigh 2.1 mMaxVertex 120
StEemcGammaFilter:: mCalDepth 279.5 mMinPartEnergy 1e-05 mHadronScale 1 mFilterMode 0 mPrintLevel 1

BFC filter configuration

StChain:INFO - Init() : Using gamma filter on the EEMC
StChain:INFO - Init() : EEMC Sampling Fraction = 0.05
StChain:INFO - Init() : Seed energy threshold = 3.8 GeV
StChain:INFO - Init() : Cluster eT threshold = 5 GeV
StChain:INFO - Init() : Maximum vertex = +/- 120 cm
StChain:INFO - Init() : Running the TEST mode (accepting all events). Set mFilterMode=1 to actually reject events in BFC

StEEmcSlowMaker configuration

BFC:INFO - setTowerGainSpread(): gain spread: 0; gain mean value: 1.1

GammaMaker configuration

runSimuGammaTreeMaker():: GammaMaker config: ConeRadius 0.7 ClusterEtThreshold 5.5 SeedEnergyThreshold 4.2 ClusterEnergyThreshold 5.5 BsmdRange 0.05237 EsmdR ange 20

A2Emaker configuration

StEEmcA2EMaker *EEanalysis = new StEEmcA2EMaker("mEEanalysis");
EEanalysis->threshold(3.0, 0);      // tower threshold (ped+N sigma)
EEanalysis->threshold(3.0, 1);      // pre1 threshold
EEanalysis->threshold(3.0, 2);      // pre2 threshold
EEanalysis->threshold(3.0, 3);      // post threshold
EEanalysis->threshold(3.0, 4);      // smdu threshold
EEanalysis->threshold(3.0, 5);      // smdv threshold

Trigger configuration

emulate L2E-gamma trigger for Run 2006 [eemc-http-mb-l2gamma:: id 137641]
Trigger conditions:
cluster Et (2x2) = 5.2GeV
seed Et = 3.7GeV

Accept/Reject relative to the total number of Pythia generated events

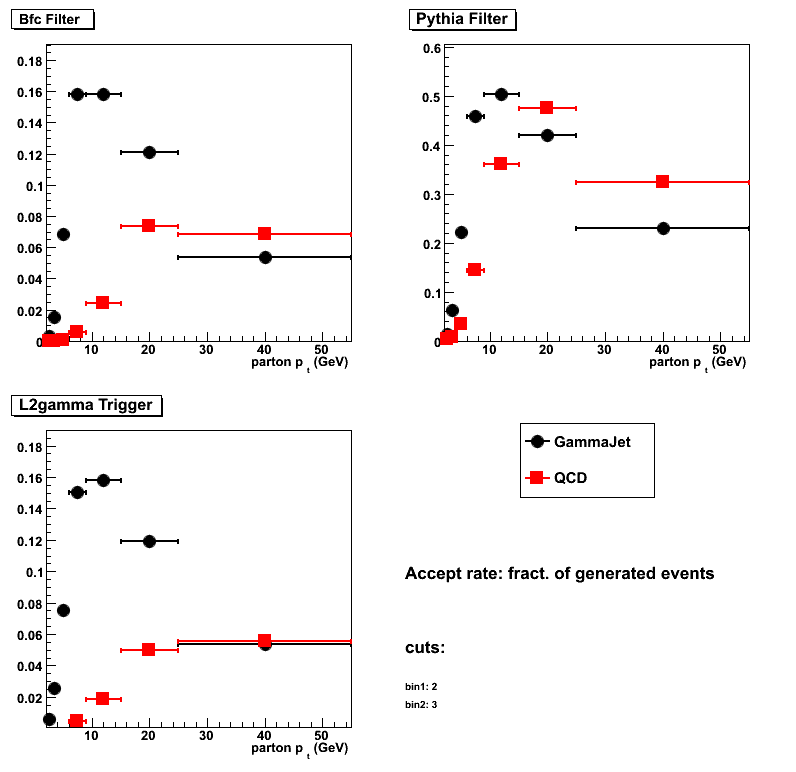

Figure 1: Fraction of accepted events

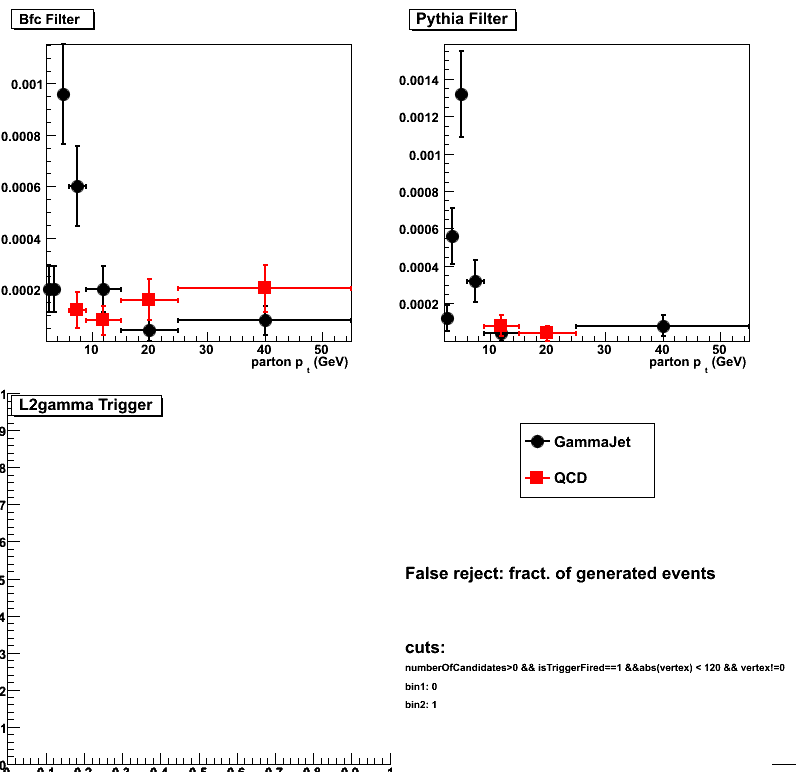

Figure 2: False rejection (Y-axis scale is 10^-3)

Accept/Reject relative to the number of Pythia filter accepted events

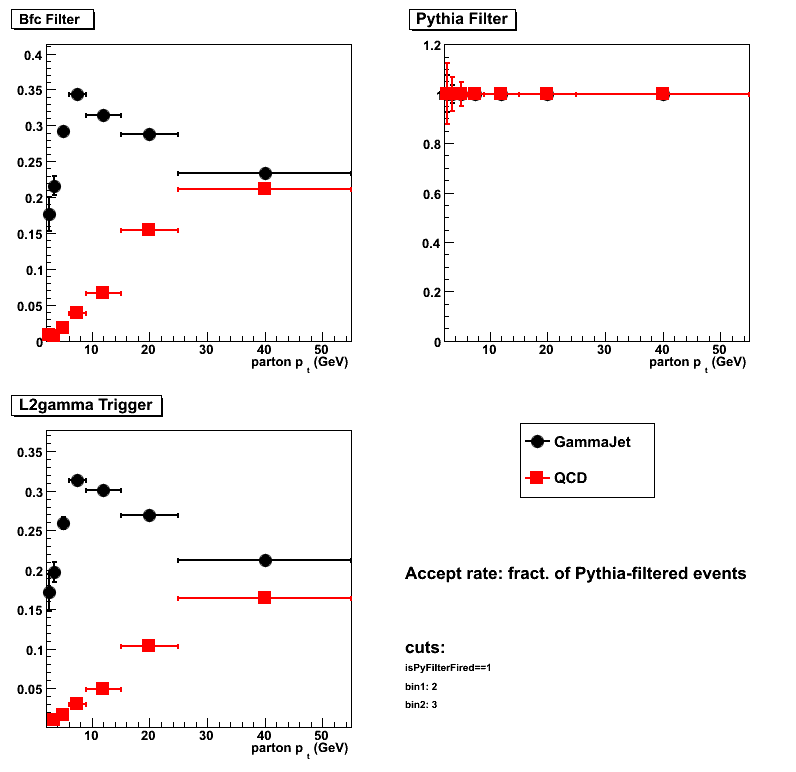

Figure 3: Fraction of accepted events relative to Pythia filter accepted events

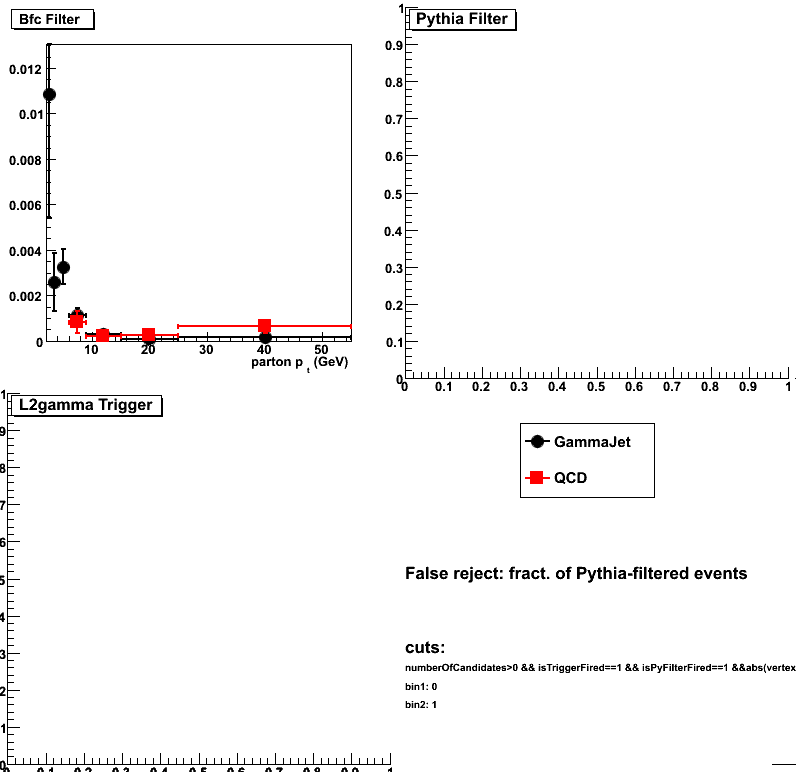

Figure 4: False rejection relative to Pythia filter accepted events

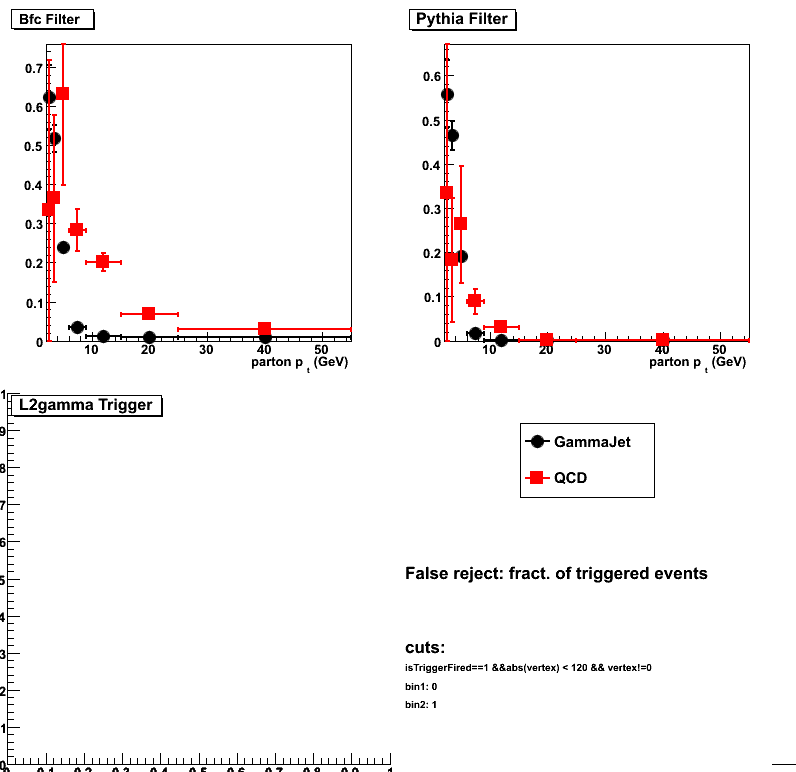

Figure 5: False rejection relative to trigger accepted events
