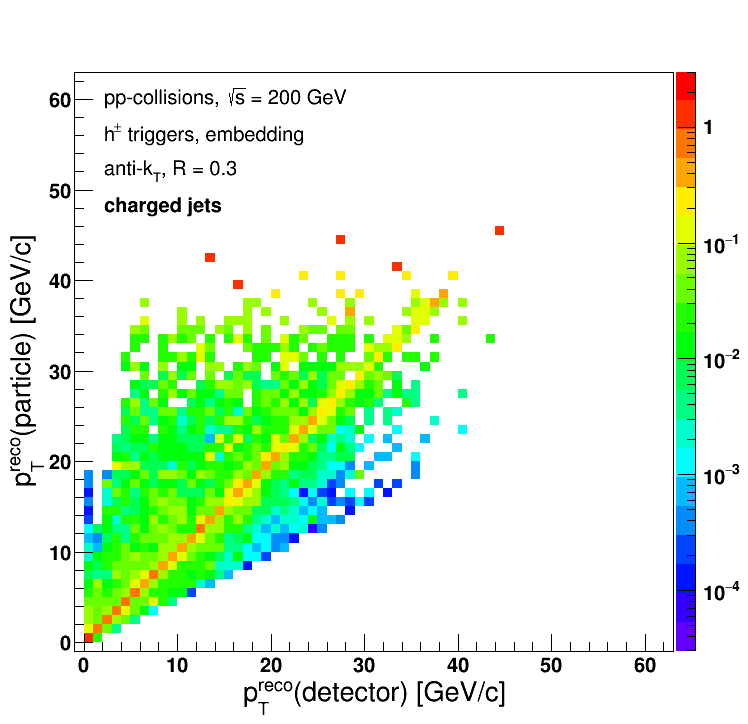

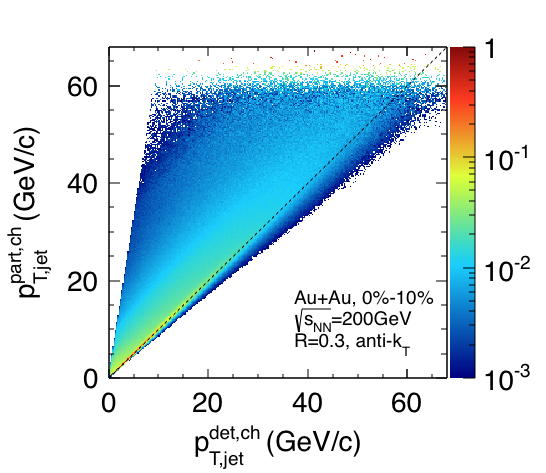

It was requested in the last JetCorr meeting (June 5th, 2018) to compare the Jet Energy Resolution (JER) of my response matrix to the one from the hadron-jet paper.  As a first comparison, below I present the RFF+FF response matrix side-by-side with the R = 0.3 detector response matrix from the hadron-jet paper.

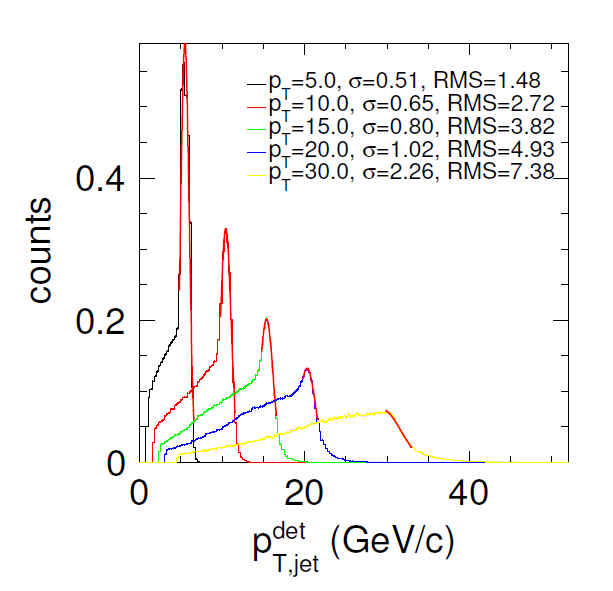

And here is the JER from the hadron-jet paper for (what should be) R = 0.3 (charged) jets.

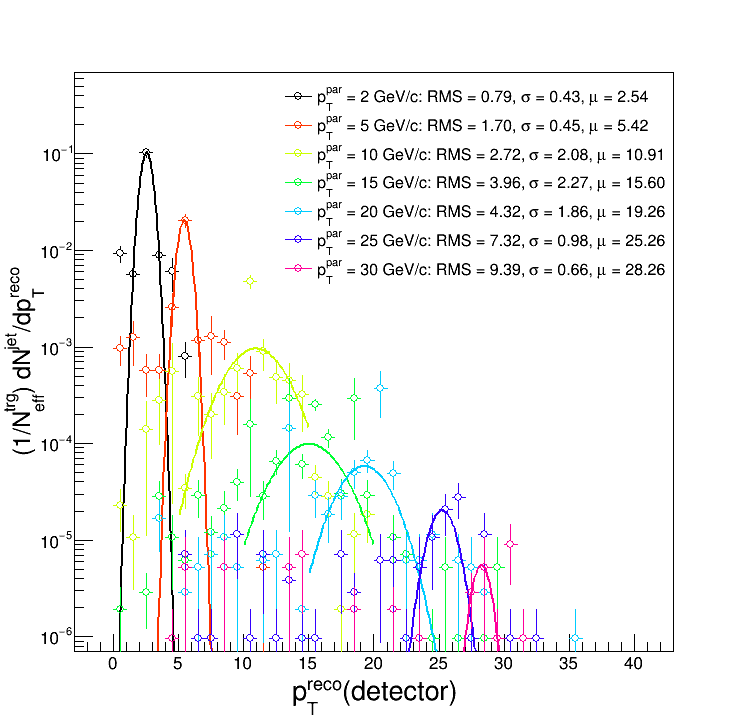

To extract my JER, I projected selected bins of 'pTparticle' onto the x-axis and fit each projection with gaussian between the range of 'pTparticle +- 5' GeV/c (e.g. 5 to 15 Gev/c for 'pTparticle = 10').  The quoted RMS is for the entire distribution, and the quoted sigma and mu are from the fit.  First the RFF matrix:

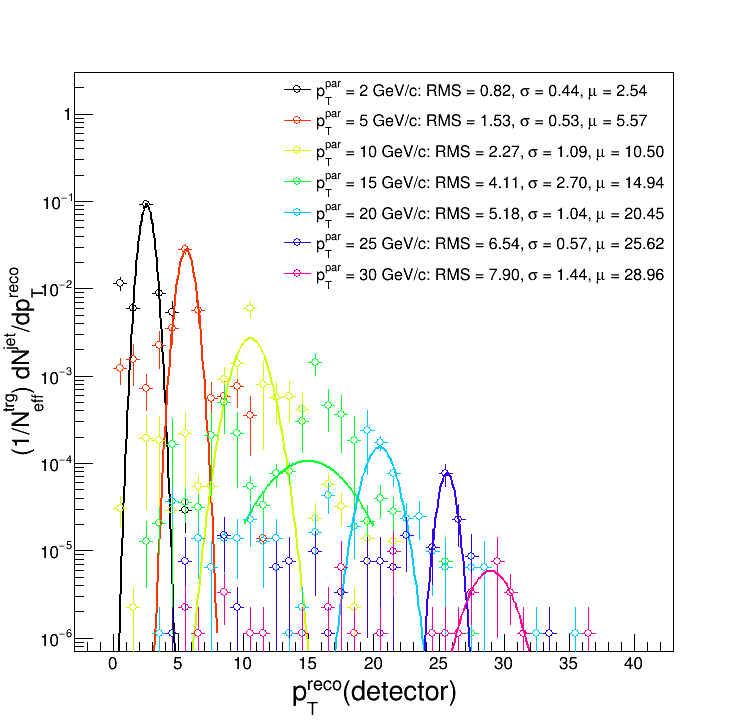

Next the FF matrix:

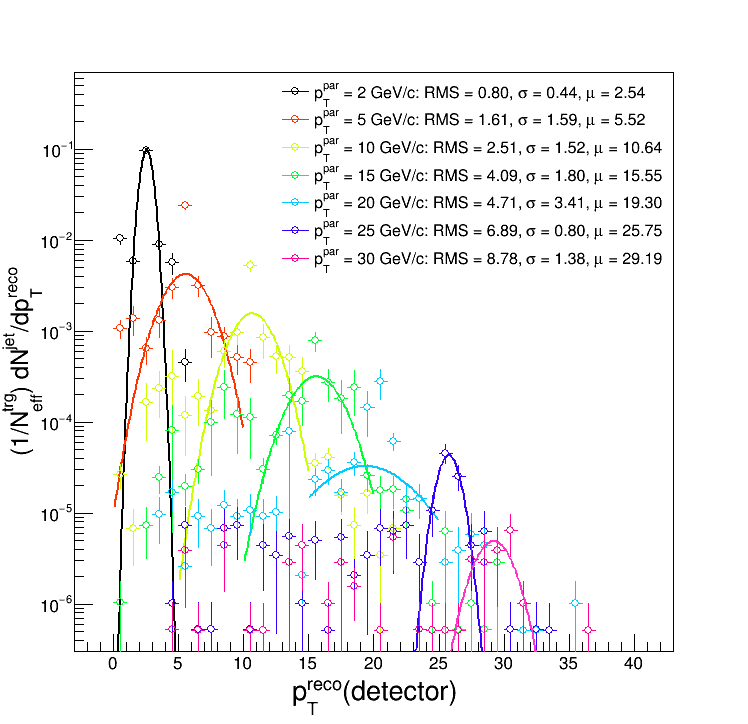

And lastly, the RFF+FF matrix:
