Following up on earlier today:

https://drupal.star.bnl.gov/STAR/blog/dmawxc/update-09172018-run-9-pp-unfolding-systematics-pi0-r-02-9-11-and-11-15-gev

Below are the systematic uncertainties for the gamma-triggered R = 0.2 charged jets (for 'eTrg = 9 - 11' and 'eTtrg = 11 - 15' GeV).  The parameters, priors, etc. are defined to be the same as the parameters used in the corresponding pi0-triggered case.  The same priors, response matrices, jet matching efficiencies, etc. as the pi0-triggered distributions were used to unfold the gamma-triggered distributions.

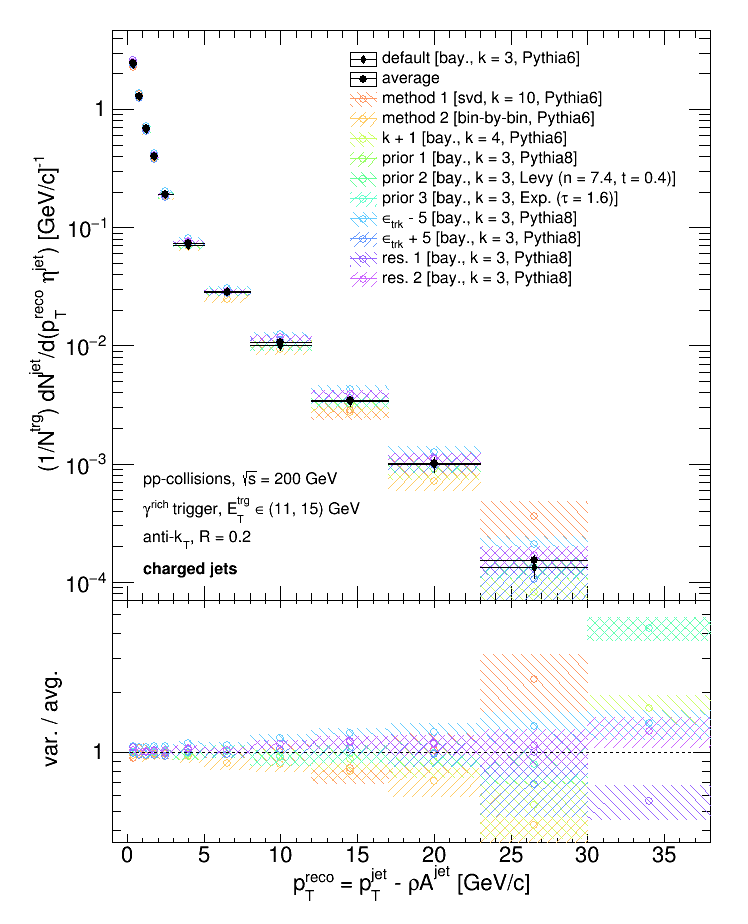

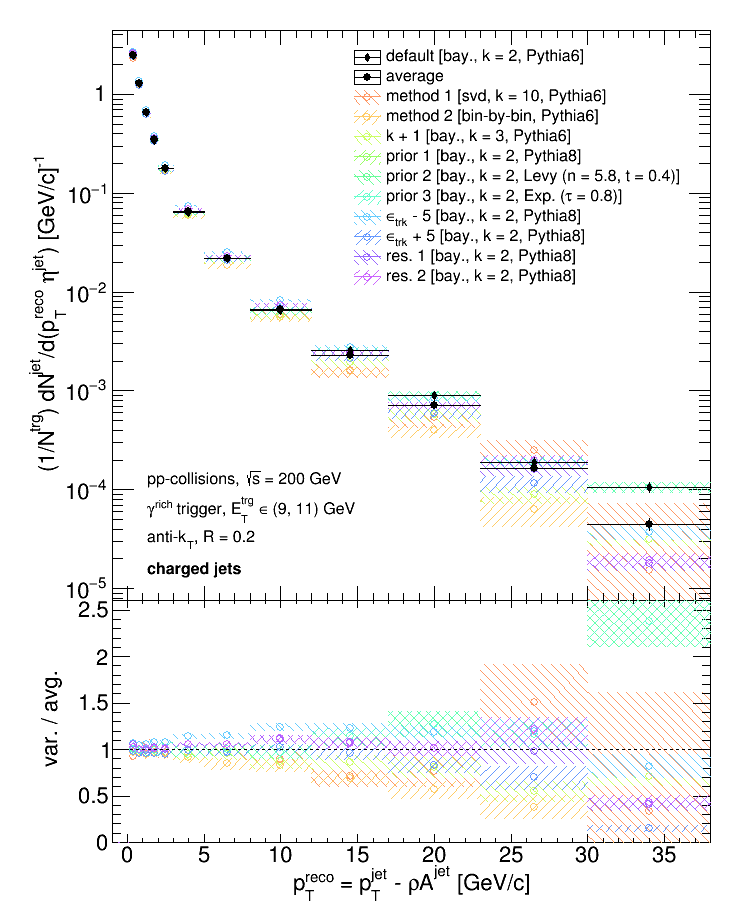

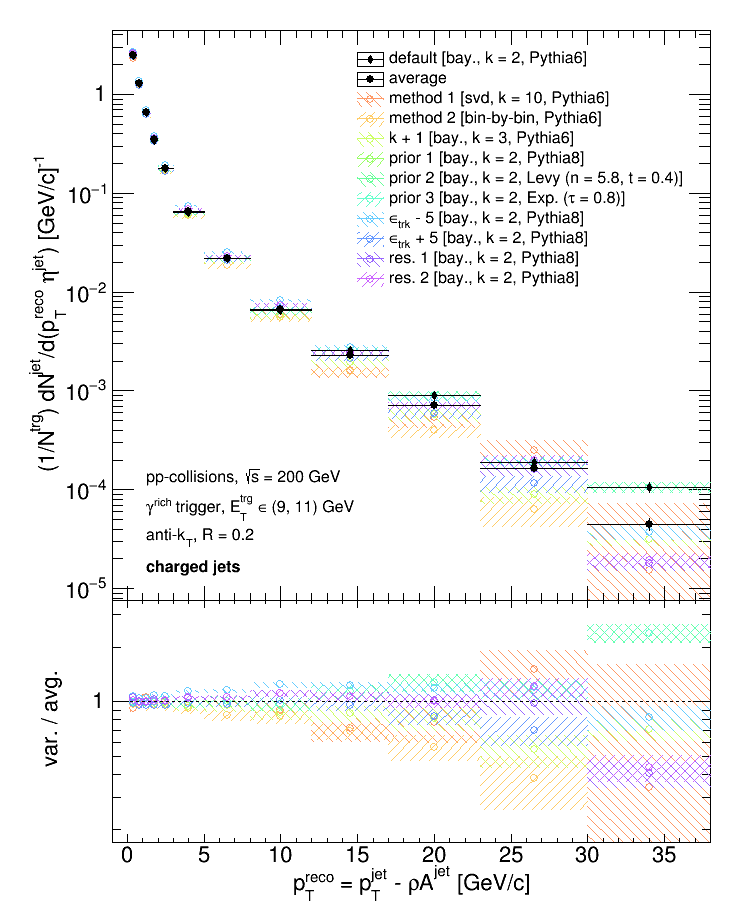

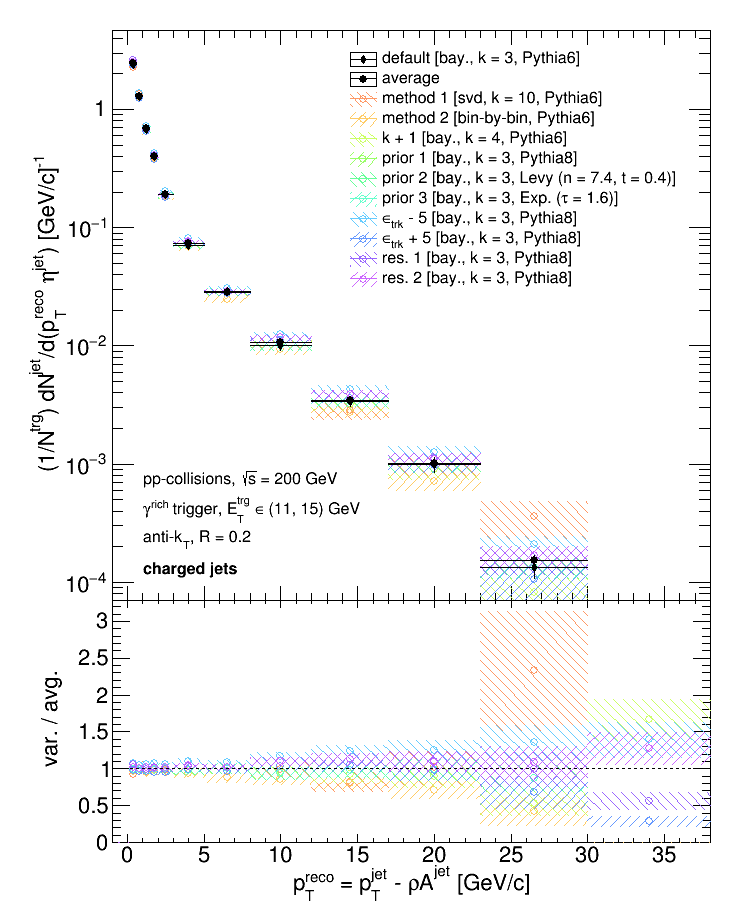

First the gamma-rich distributions:

By design, the uncertainties here assess all the same systematics as the pi0-triggered distributions shown earlier.

Update [09.17.2018]: a more detailed comparison of the default unfolding vs. the efficiency variations can be found in the link below.

https://drupal.star.bnl.gov/STAR/blog/dmawxc/update-09172018-run-9-pp-default-unfolding-vs-efficiency-5-r-02-charged-jets
