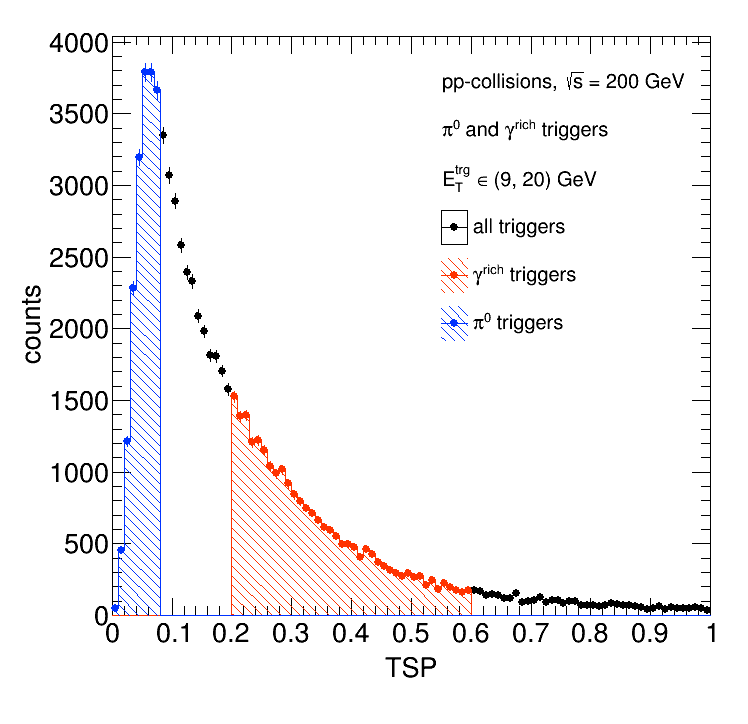

This post compiles some miscellaneous plots I made for my Progress In Research talk at the Texas A&M Cyclotron Institute on November 14th, 2018.  First is the trigger TSP for our Run 9 pp data:

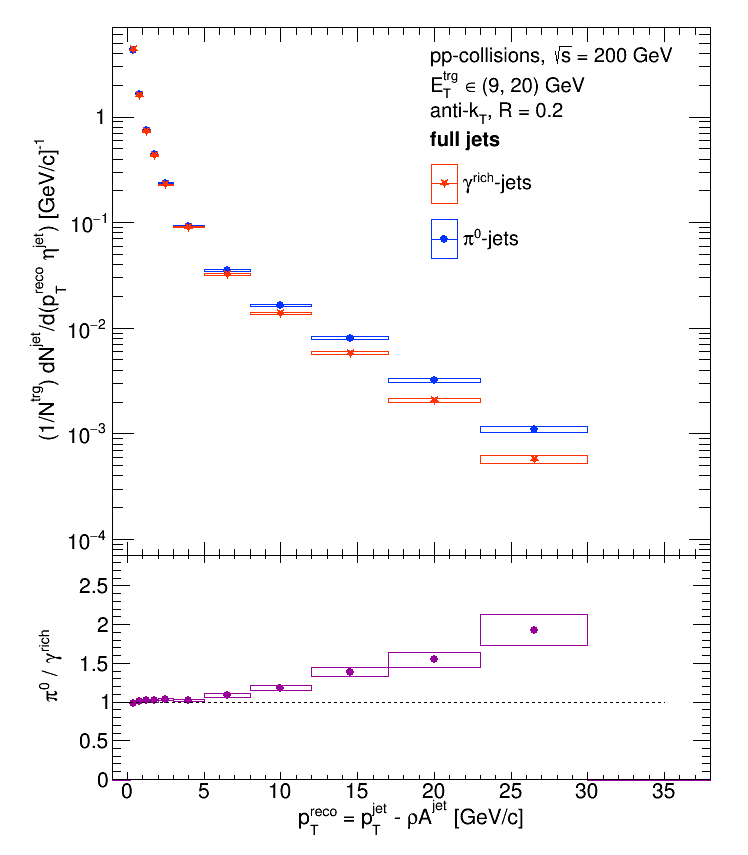

Here are the (raw) charged and full recoil-jet spectra for pi0 and gamma-rich triggers (eTtrg = 9 - 20 GeV) for R = 0.2.

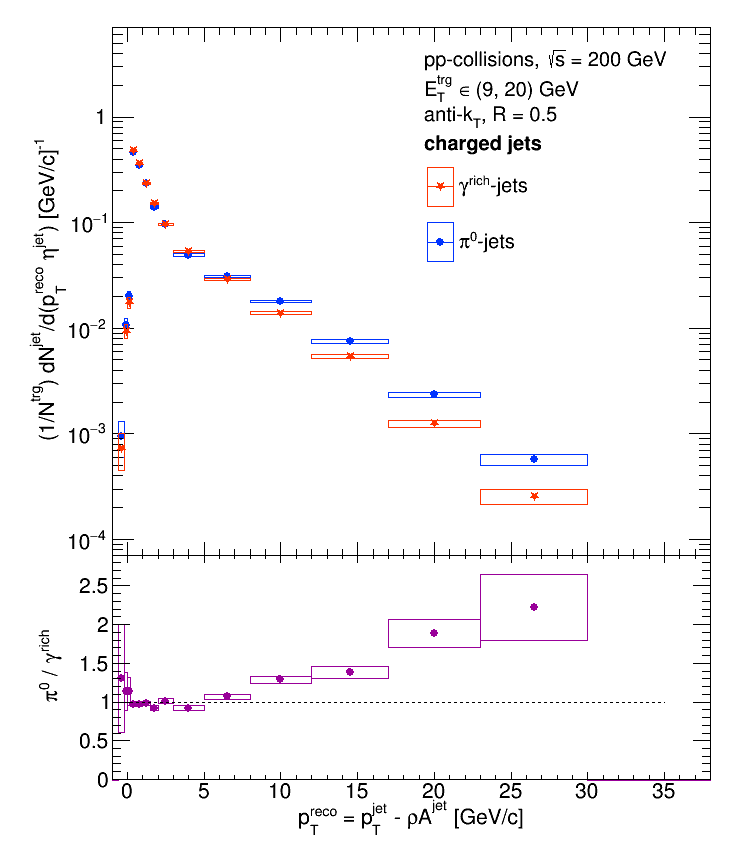

And also, for kicks and grins, here's the charged R = 0.5 equivalent:

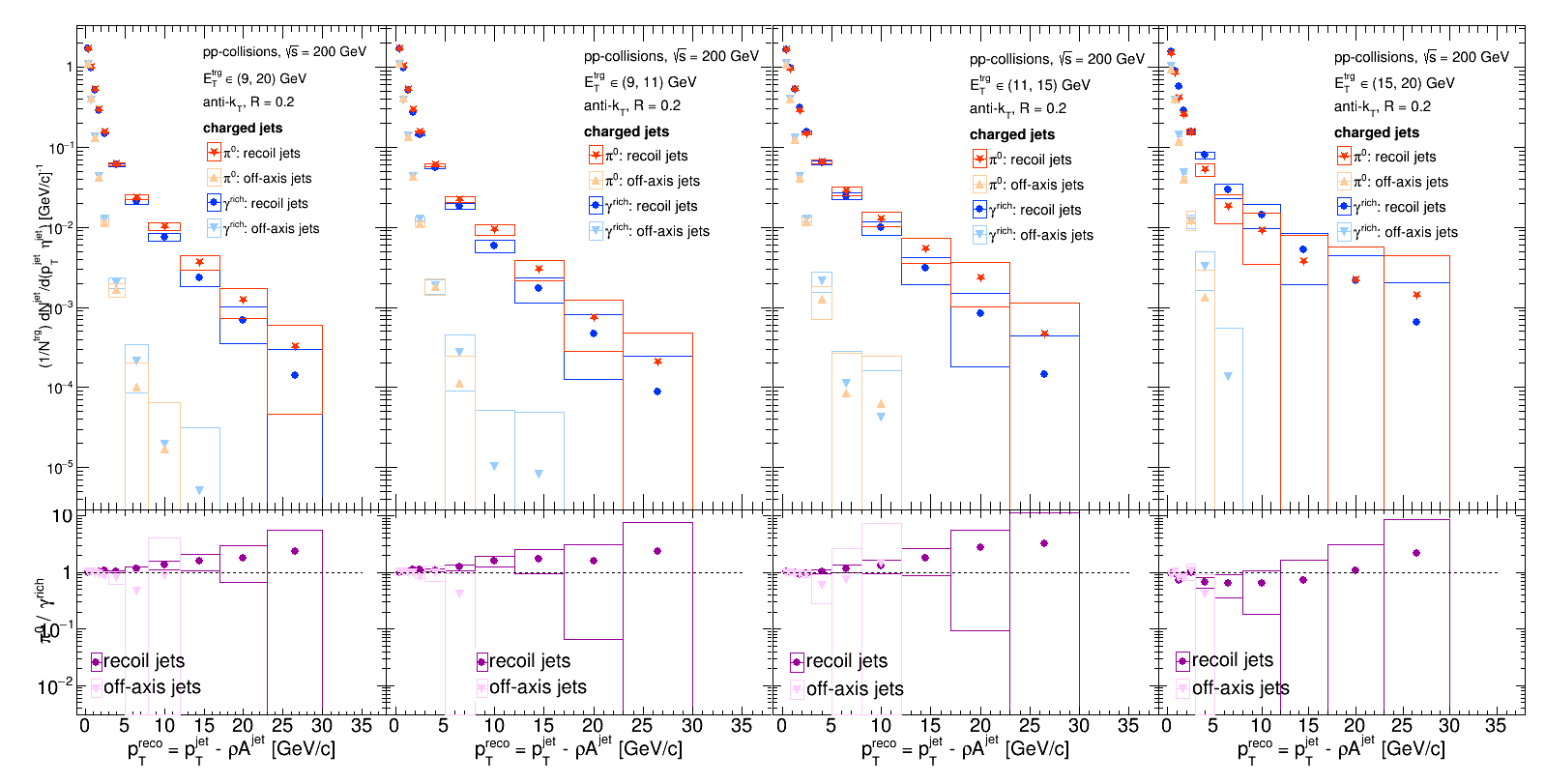

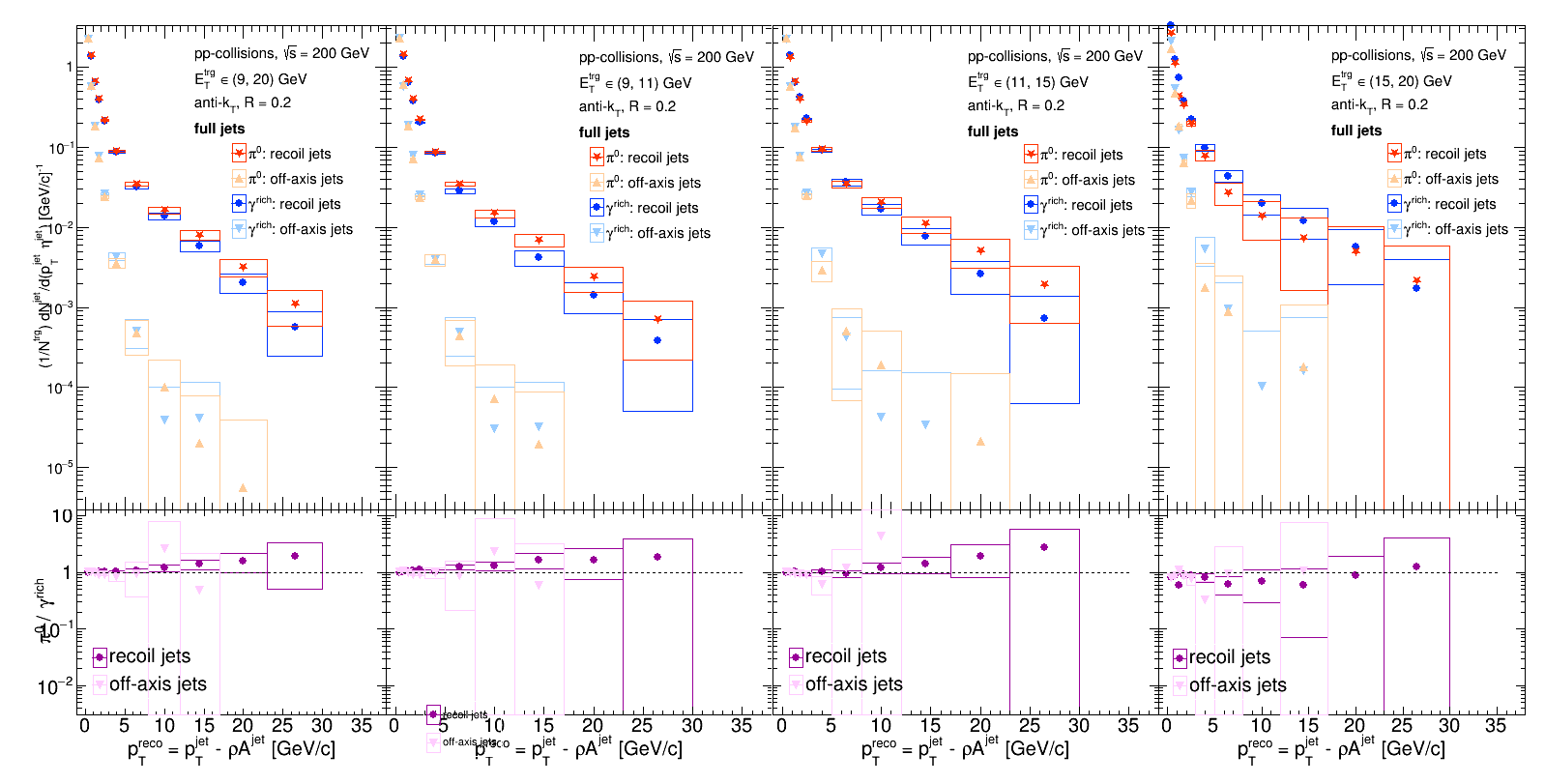

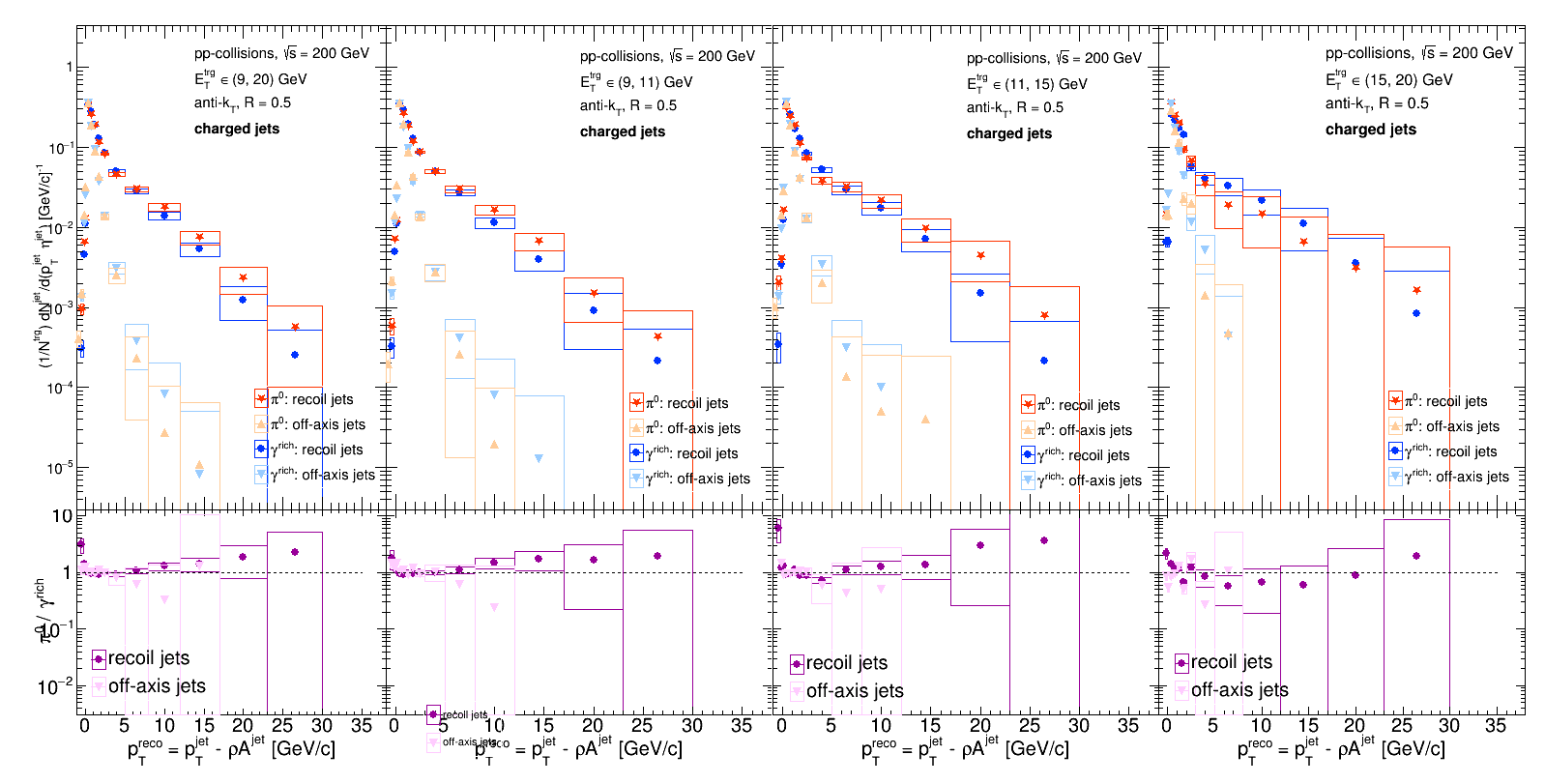

Next I created some plots detailing how the recoil-jet and uncorrelated-jet spectra evolved with eTtrg.

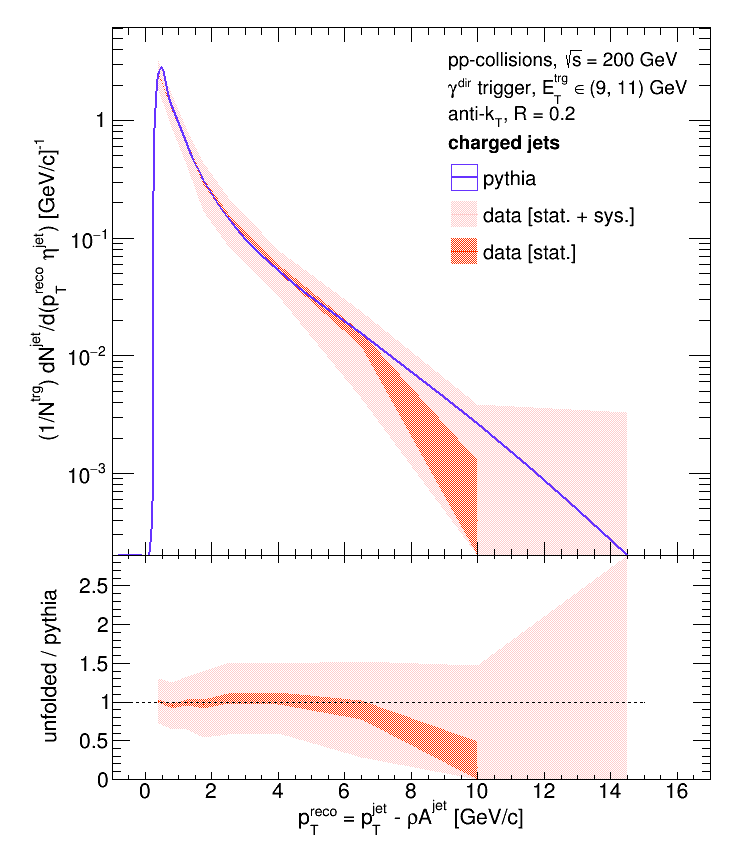

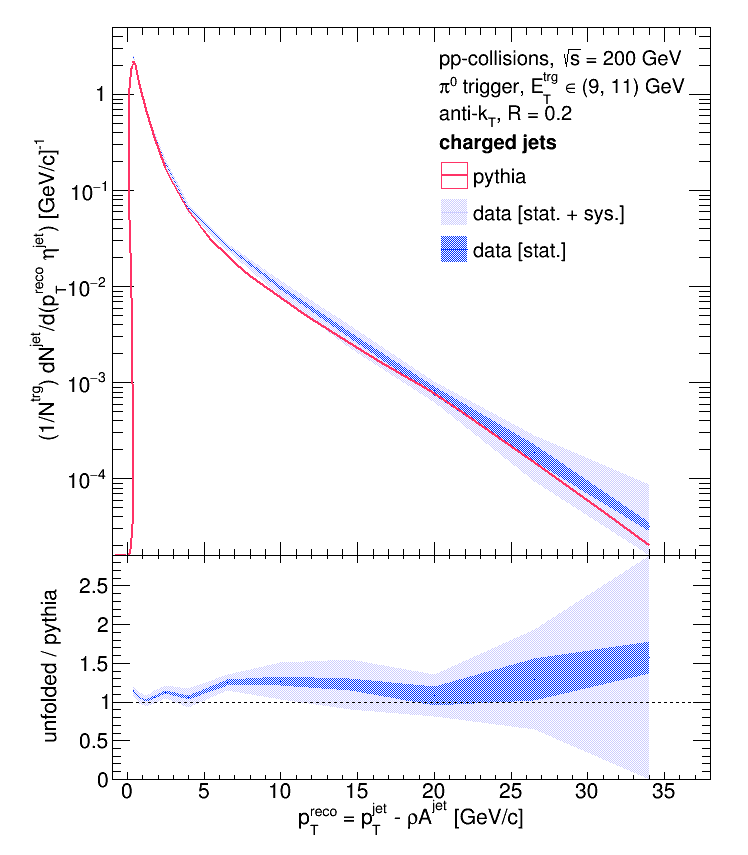

And lastly, here are the fully corrected R = 0.2, charged, eTtrg = 9 - 11 GeV recoil-jet spectra for pi0 and gamma-direct triggers.

These last two are older plots.  I just slapped a new coat of paint on them.  The details of what all went into them can be found in these posts:

https://drupal.star.bnl.gov/STAR/blog/dmawxc/update-09282018-run-9-pp-unfolding-results-different-pttrk-cut-9-11-gev-pi0-triggers-r-0
https://drupal.star.bnl.gov/STAR/blog/dmawxc/update-10092018-run-9-pp-unfolding-results-gamma-rich-and-gamma-direct-triggers-9-11-gev

(The first link is for the pi0 spectrum, and the second is for the gamma-direct spectrum)
