Cluster energy fraction in 3x3 patch: detector eta < 1.5

Updated on Mon, 2008-11-24 12:00. Originally created by seluzhen on 2008-11-21 15:55.

Energy fraction from NxN cluster in 3x3 patch: detector eta < 1.5

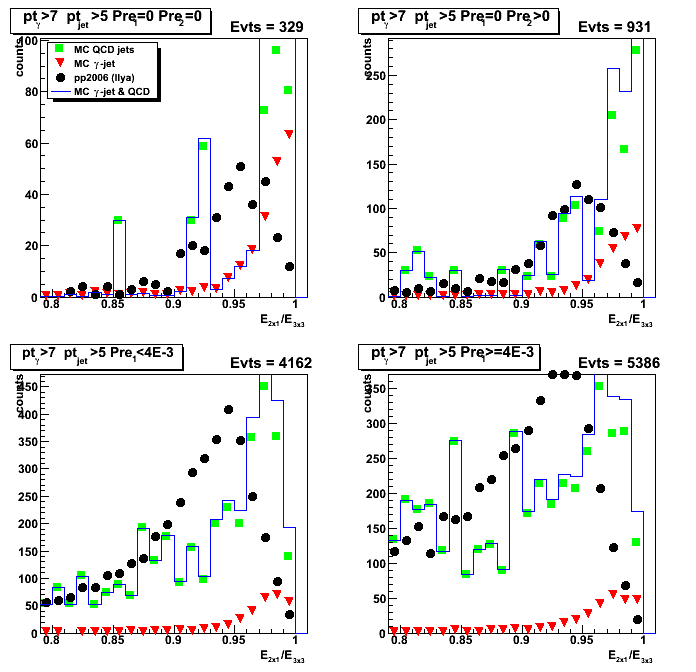

Figure 1a: 2x1/3x3 energy fraction [number of counts per given fraction]

Figure 2a: 2x2/3x3 energy fraction [number of counts per given fraction]

Yield vs. NxN cluster energy fraction in 3x3 patch: detector eta < 1.5

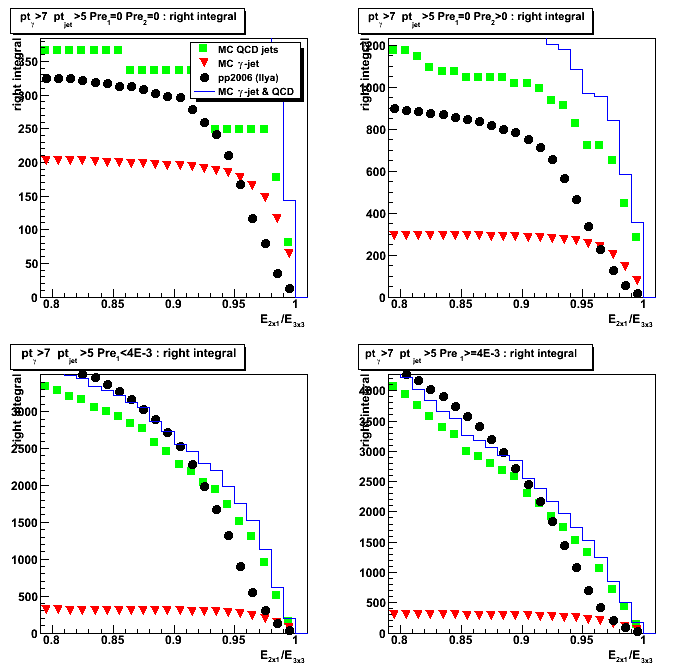

Figure 4a: 2x1/3x3 energy fraction [yield]

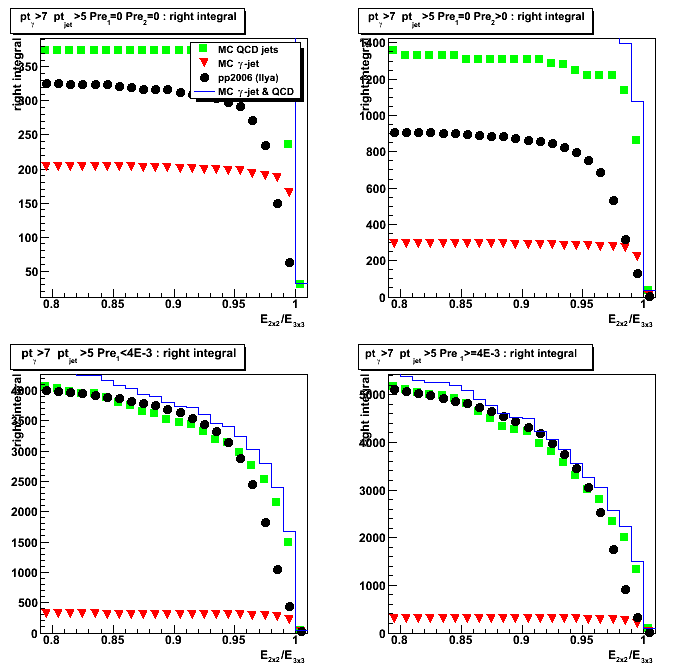

Figure 5a: 2x2/3x3 energy fraction [yield]
