Class StDraw3D - to draw the 3D primitives like 3D points and 3D lines decorated with the STAR detector geometry. More...

#include <StDraw3D.h>

Inheritance diagram for StDraw3D:

Public Member Functions
	StDraw3D (const char detectorName="TPC", TVirtualPad pad=0)
	StDraw3D( const char detectorName,TVirtualPad pad) ctor. More...

	StDraw3D (TVirtualViewer3D viewer, TVirtualPad pad)
	This is an overloaded member function, provided for convenience. More...

virtual const StDraw3DStyle &	AddStyle (EDraw3DStyle type, Color_t col, Style_t sty, Size_t siz)
	Map the predefined style type to the ROOT graphical attributes col color sty style siz size. More...

TVirtualPad *	Pad () const

TVirtualViewer3D *	Viewer () const

virtual void	Clear (Option_t *opt="update")
	Remove all objects from the list and update the screen if opt is "update".

virtual TObject *	Draw (TObject o, const char option="")

virtual const TString &	DetectorNames () const

virtual void	SetDetectors (const char *nameDetectors)
	Set the list of the detector names to be used as the event "background". More...

virtual void	AddDetectors (const char *nameDetectors)
	Append the detector names to the list of the event "background" shapes. More...

virtual void	Draw (Option_t *option="")

virtual const StDraw3DStyle &	Style (EDraw3DStyle type) const
	Return the reference to the predefined StDraw3DStyle object. More...

virtual StDraw3DStyle &	Style (EDraw3DStyle type)

virtual void	SetBkColor (Color_t newBkColor)
	Set the ROOT color as the widget background. More...

virtual TObject *	Draw3D (int n, const float *xyz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Draw3D (int n, const double *xyz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const float *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const double *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const float *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add n 3D coordinates from the xyz array to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	Points (int n, const double *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< float > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< double > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< float > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< double > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Point (float x, float y, float z, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))

virtual TObject *	Point (float x, float y, float z, EDraw3DStyle sty)

virtual TObject *	Line (int n, const double *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (float x0, float y0, float z0, float x1, float y1, float z1, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const float *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	Line (const std::vector< float > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< double > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const float *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const double *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< float > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< double > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

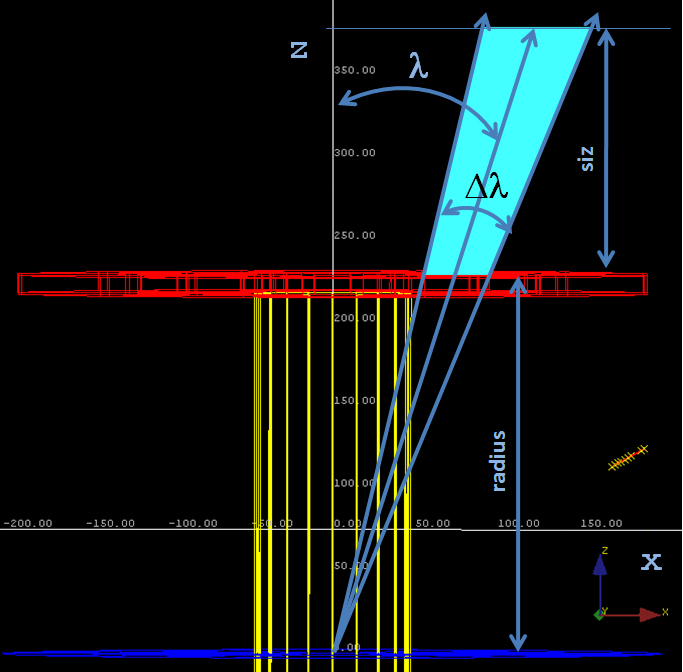

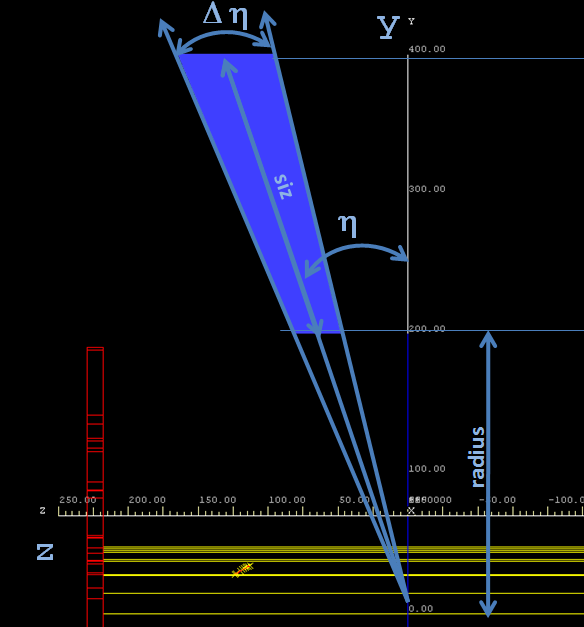

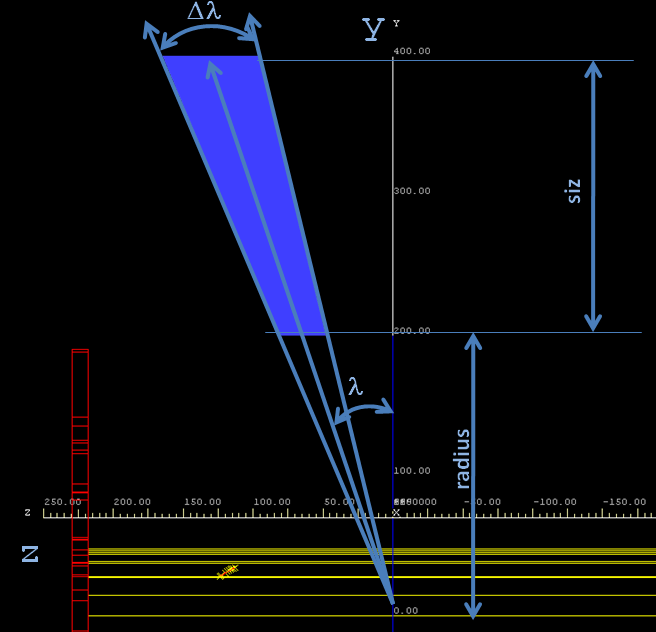

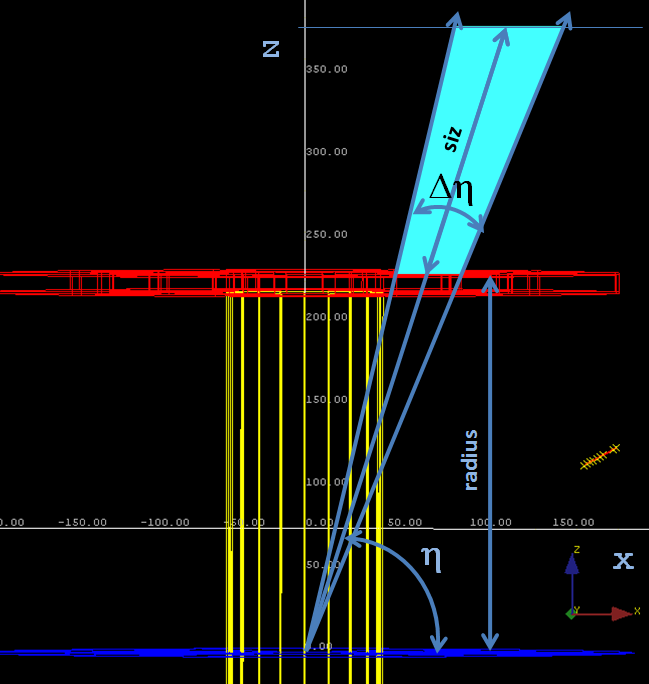

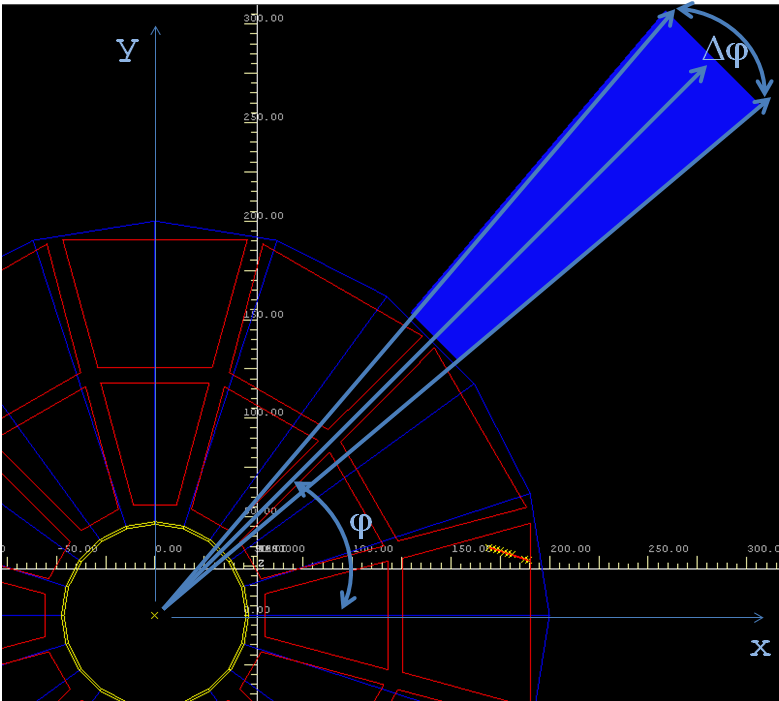

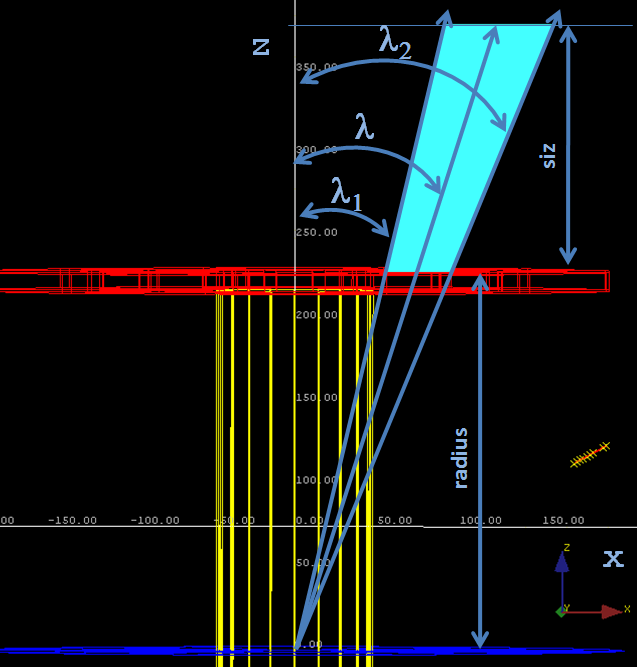

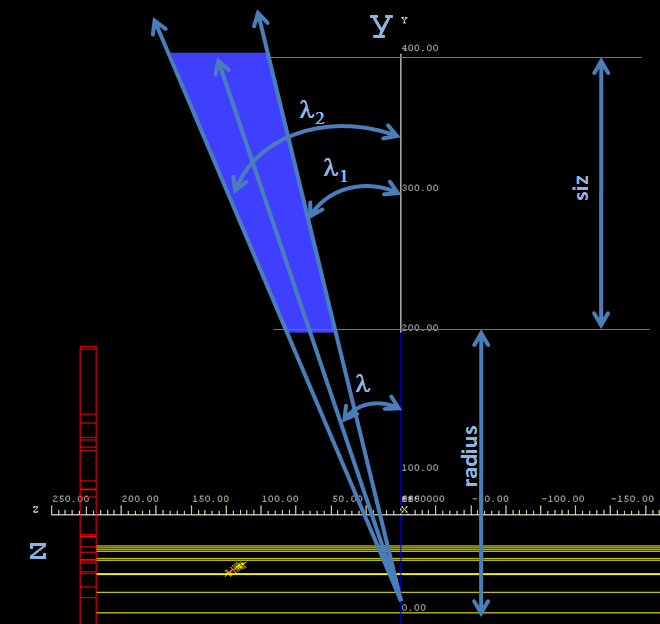

virtual TObject *	Tower (float radius, float lambda, float lambda1, float lambda2, float phi, float dphi, Color_t col, Style_t sty, Size_t siz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Tower (float radius, float lambda, float phi, float dlambda, float dphi, Color_t col, Style_t sty, Size_t siz)
	Draw the TTRAP object suitable to represent the calorimeter data. More...

virtual TObject *	Tower (float radius, const StarRoot::StEta &eta, float phi, float dphi, Color_t col, Style_t sty, Size_t siz)
	This is an overloaded member function, provided for convenience. More...

virtual void	Joint (StDraw3D *dsp)

virtual void	SetModel (TObject *model)

virtual void	SetComment (const char *cmnt)

virtual void	AddComment (const char *cmnt)

virtual void	Print (const char *filename) const
	Save the current 3D scene using "wrl" file format. More...

virtual void	Print (const char filename, const char type) const
	This is an overloaded member function, provided for convenience. More...

virtual void	Save (const char filename, const char type="png") const
	This is an overloaded member function, provided for convenience. More...

virtual void	Update (bool asap=false)
	Render all items from the current display list onto the screen and refesh the screen immiately if asap is defined. More...

virtual void	Modified ()

virtual void	UpdateModified ()

virtual void	SetDrawOption (Option_t *option="")
	Set the varous drawing option. The method passes the input options to TQtCoinWidget::SetDrawOption method. More...

virtual void	SetFooter (const char *footer)
	Set the footer (caption) defined by the input footer text string. More...

virtual void	Animate ()
	Animate the viewer from the gdb session. More...

void	Draw3DTest ()
	The built-in quick test to check the application environment and test the basic methods. More...

Static Public Member Functions
static void	ShowTest ()

static void	ShowDetectorTest (const char *detectorName="StarDetectorUnfolding")

Protected Member Functions
virtual void	UpdateViewer (TVirtualPad *pad=0)

Detailed Description

Class StDraw3D - to draw the 3D primitives like 3D points and 3D lines decorated with the STAR detector geometry.

Author: Valery Fine(fine@.nosp@m.bnl..nosp@m.gov)

Date: 27/04/2008

See Also: Draw3D.C

Class provides the simple way to visualize the event primitives in 3D against of the STAR detector geometry quickly.

Try:

*   > ln -s  $STAR/StRoot/macros/.rootrc
*   > root.exe Draw3D.C
*

to get the test picture below:

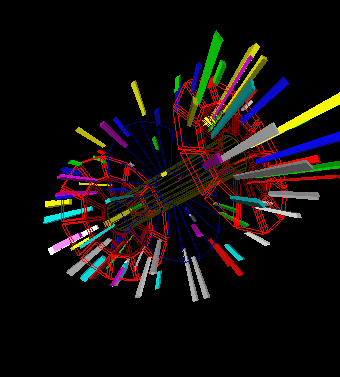

Test image is to show several tpc points , tpc track, barrel and endcap towers

See Also: StDraw3D::Draw3DTest() The base StDraw3D class is a controller connecting the arbitrary "model" object with the arbitrary ROOT 3D class "view" object to implement the so-called "Model / View" paradigm.
In our case, the "Model" is an arbitrary object and the "View" is an instance of some ROOT 3D class. To render views the StDraw3D instantiates the TCanvas and TVirtualViewer3D to allow the user select interactively the "view" instance and invoke the model methods like:

TObject::Inspect() to inspect the model data-member values;
TObject::GetObjectInfo to label the view with the current model information;
TVirtualPadEditor to set the model attributes.

Definition at line 165 of file StDraw3D.h.

Constructor & Destructor Documentation

StDraw3D::StDraw3D	(	const char *	detectorName = `"TPC"`,
		TVirtualPad *	pad = `0`
	)

StDraw3D( const char *detectorName,TVirtualPad *pad) ctor.

 \param detectorName (default = "TPC") - the names of the STAR detectors
                                             to be used as the "event primitives" background.
                           The detectorName is a comma separated list of the OpenInventor files
                           with no extension\n
                           For all names on the list one should provide the iv file with
                           the "iv" extension:\n

<name>.iv

Parameters

detectorName = 0 - no detector geometry is to be rendered

pad

(default = 0) - The ROOT TPad to be used to render the event wireframe view

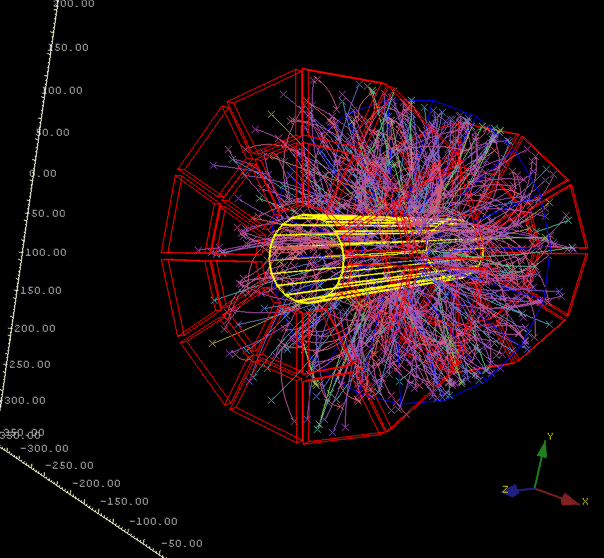

Event over detector geometry	Event with no detector geometry

Note: This is the base class for the advanced EventDisplay subclasses.
Normaly you do not need to instantiate StDraw3D directly.; StDraw class ctor defines the set of the pre-defines styles:

Style	Color	Style	Size	comment
kVtx	kYellow	5	3.5	3D marker - vertex
kPrimaryTrack	kRed	1	2.00	3D polyline - track
kGlobalTrack	kRed	1	2.00	3D polyline - track
kTrackBegin	kYellow	5	3.5	3D marker - vertex
kTrackEnd	kYellow	5	3.5	3D marker - vertex
kUsedHit	kBlue	4	0.35	3D marker - track start point
kUnusedHit	kGreen	1	1.00	3D marker - track end point

See Also: http://root.cern.ch/root/html/TColor.html; http://root.cern.ch/root/html/TAttLine.html; http://root.cern.ch/root/html/TAttMarker.html

Definition at line 248 of file StDraw3D.cxx.

StDraw3D::StDraw3D	(	TVirtualViewer3D *	viewer,
		TVirtualPad *	pad
	)

This is an overloaded member function, provided for convenience.

Create a EventDisplay using the external TVirtualViewer3D viewer and TVirtualPad pad

Definition at line 276 of file StDraw3D.cxx.

Member Function Documentation

void StDraw3D::AddDetectors ( const char * nameDetectors )

virtual

Append the detector names to the list of the event "background" shapes.

Parameters

nameDetectors

- a comma separated list of the OpenInventor files with no extension
For all names on the list one should provide the iv file with the "iv" extension:

<name>.iv

Definition at line 382 of file StDraw3D.cxx.

const StDraw3DStyle & StDraw3D::AddStyle	(	EDraw3DStyle	type,
		Color_t	col,
		Style_t	sty,
		Size_t	siz
	)

virtual

Map the predefined style type to the ROOT graphical attributes col color sty style siz size.

Normally one does not need to call this method. All pre-defined styles are to be filled by StDraw3D class ctor

Parameters

type	- The pre-define type we want to define
col	- ROOT color attribute (See: http://root.cern.ch/root/html/TColor.html)
sty	- ROOT style attribute. It can be either line http://root.cern.ch/root/html/TAttLine.html or marker http://root.cern.ch/root/html/TAttMarker.html
siz	- ROOT graphical attribute size . It can be either line http://root.cern.ch/root/html/TAttLine.html or marker http://root.cern.ch/root/html/TAttMarker.html

Definition at line 469 of file StDraw3D.cxx.

References Style().

void StDraw3D::Animate ( )

virtual

Animate the viewer from the gdb session.

For example, use

gdb> p gEventDisplay->Point(0,0,0,1,1,1)

to add one 3D point to the plot followed by

gdb> p gEventDisplay->Animate();

to be able to interract with the display. To continue the debugger session select "option"->"Interrupt" menu

Definition at line 1624 of file StDraw3D.cxx.

References Pad(), and Update().

const TString & StDraw3D::DetectorNames ( ) const

virtual

Returns: The TString of the comma separated names

Definition at line 331 of file StDraw3D.cxx.

TObject * StDraw3D::Draw3D	(	int	n,
		const float *	xyz
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the pre-defined kVtx style It is designed to be used from the interactive "gdb" session because it needs 2 parameters only it

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating point values ( the array should be 3*n long at least )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 686 of file StDraw3D.cxx.

References Points().

Referenced by Draw3DTest().

TObject * StDraw3D::Draw3D	(	int	n,
		const double *	xyz
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the pre-defined kVtx style It is designed to be used from the interactive "gdb" session because it needs 2 parameters only it

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating point values ( the array should be 3*n long at least )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 707 of file StDraw3D.cxx.

References Points().

void StDraw3D::Draw3DTest ( )

The built-in quick test to check the application environment and test the basic methods.

Try:

> ln -s $STAR/StRoot/macros/.rootrc

> root.exe Draw3D.C

to get the picture:

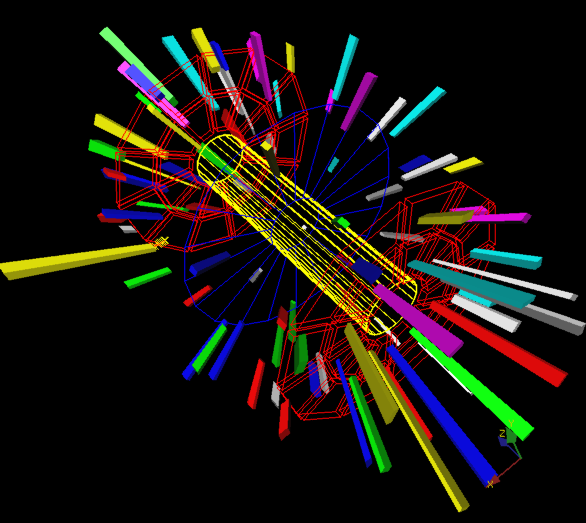

Test image is to show several tpc points , tpc track, barrel and endcap towers

Animated version of the test image

Definition at line 1178 of file StDraw3D.cxx.

References Draw3D(), Line(), Pad(), Tower(), and Update().

Referenced by Draw3D().

TObject * StDraw3D::Line	(	int	n,
		const double *	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 807 of file StDraw3D.cxx.

Referenced by Draw3DTest(), Line(), StuDraw3DEvent::Track(), and StuDraw3DMuEvent::Track().

TObject * StDraw3D::Line	(	float	x0,
		float	y0,
		float	z0,
		float	x1,
		float	y1,
		float	z1,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add a line sigment connecting 2 points defined by the ("x0","y0" "z0") and ("x1","y1" "z1") to the display list with the col color, sty style, and siz size if provided

Parameters

x0,y0,z0	- the 3D coordinates of the first point
x1,y1,z1	- the 3D coordinates of the second point
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the line segment defined by 2 input points

Definition at line 781 of file StDraw3D.cxx.

References Line().

TObject * StDraw3D::Line	(	int	n,
		const float *	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided.

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 755 of file StDraw3D.cxx.

TObject * StDraw3D::Line	(	const std::vector< float > &	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided

Parameters

xyz	- the vector of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 831 of file StDraw3D.cxx.

References Line().

TObject * StDraw3D::Line	(	const std::vector< double > &	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided

Parameters

xyz	- the vector of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 851 of file StDraw3D.cxx.

References Line().

TObject * StDraw3D::Line	(	int	n,
		const float *	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add n connected points defined by the array of 3D coordinates to the display list with the sty pre-defined style if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 912 of file StDraw3D.cxx.

References Line(), and Style().

TObject * StDraw3D::Line	(	int	n,
		const double *	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add n connected points defined by the array of 3D coordinates to the display list with the sty pre-defined style if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 934 of file StDraw3D.cxx.

References Line(), and Style().

TObject * StDraw3D::Line	(	const std::vector< float > &	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add the connected points defined by the vector of 3D coordinates to the display list with the sty pre-defined style if provided

Parameters

xyz	- the vector of the floating ount values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 869 of file StDraw3D.cxx.

References Line(), and Style().

TObject * StDraw3D::Line	(	const std::vector< double > &	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add the connected points defined by the vector of 3D coordinates to the display list with the sty pre-defined style if provided

Parameters

xyz	- the vector of the floating ount values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyLine3D created to render the input xyz array

Definition at line 890 of file StDraw3D.cxx.

References Line(), and Style().

TVirtualPad * StDraw3D::Pad ( ) const

Returns: The TPad pointer used to paint onto.

Definition at line 341 of file StDraw3D.cxx.

References Pad().

Referenced by Animate(), Clear(), Draw3DTest(), Pad(), Save(), SetBkColor(), and Update().

TObject * StDraw3D::Points	(	int	n,
		const float *	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the sty pre-defined style if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating point values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 596 of file StDraw3D.cxx.

References Style().

Referenced by Draw3D(), StuDraw3DEvent::Hits(), Points(), and StuDraw3DEvent::TrackInOut().

TObject * StDraw3D::Points	(	int	n,
		const double *	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the sty pre-defined style if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating point values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 619 of file StDraw3D.cxx.

References Points(), and Style().

TObject * StDraw3D::Points	(	int	n,
		const float *	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

Add n 3D coordinates from the xyz array to the display list with the col color, sty style, and siz size if provided.

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 504 of file StDraw3D.cxx.

TObject * StDraw3D::Points	(	int	n,
		const double *	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array of double values to the display list with the col color, sty style, and siz size if provided

Parameters

n	- the number of the 3D coordinates
xyz	- the pointer to the array of the floating ount values ( the array should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 531 of file StDraw3D.cxx.

TObject * StDraw3D::Points	(	const std::vector< float > &	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add 3D coordinates from the xyz vector to the display list with the sty pre-defined style if provided

Parameters

xyz	- the vector of the floating point values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 641 of file StDraw3D.cxx.

References Points(), and Style().

TObject * StDraw3D::Points	(	const std::vector< double > &	xyz,
		EDraw3DStyle	sty
	)

virtual

This is an overloaded member function, provided for convenience.

Add 3D coordinates from the xyz vector to the display list with the sty pre-defined style if provided

Parameters

xyz	- the vector of the floating point values ( the array should be 3*n long at least )
sty	- EDraw3DStyle value selecting some predefined style

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 663 of file StDraw3D.cxx.

References Points(), and Style().

TObject * StDraw3D::Points	(	const std::vector< float > &	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the col color, sty style, and siz size if provided

Parameters

xyz	- the vector of the floating ount values ( the container should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 557 of file StDraw3D.cxx.

References Points().

TObject * StDraw3D::Points	(	const std::vector< double > &	xyz,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

This is an overloaded member function, provided for convenience.

Add n 3D coordinates from the xyz array to the display list with the col color, sty style, and siz size if provided

Parameters

xyz	- the vector of the floating ount values ( the container should be 3*n long at least )
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TPolyMarker3D created to render the input xyz array

Definition at line 577 of file StDraw3D.cxx.

References Points().

void StDraw3D::Print ( const char * filename ) const

virtual

Save the current 3D scene using "wrl" file format.

Parameters

filename - the file name to save the 3d scene

Note

: The "wrl" format can be converted to the standatd 3D PDF format It can be done "Adobe 3D reviewer"

See examples:

You need to install the Adobe Reader version 9 or higher to be able to "click and see" the interactive ( zoom, pan, select / highlight the pieces, etc ) 3D image also

Definition at line 1032 of file StDraw3D.cxx.

References Save().

Referenced by Draw3D().

void StDraw3D::Print	(	const char *	filename,
		const char *	type
	)		const

virtual

This is an overloaded member function, provided for convenience.

Save the current 3D scene using the type file format

Parameters

filename	- the file name to save the 3d scene
type	- the pre-defined file format. It can be 3D scene format like "wrl"/"iv" or the well-known pixmap formats like "pnd", "jpg" etc

Definition at line 1045 of file StDraw3D.cxx.

References Save().

void StDraw3D::Save	(	const char *	filename,
		const char *	type = `"png"`
	)		const

virtual

This is an overloaded member function, provided for convenience.

Save the current 3D scene using the 3D "wrl" format if possible otherwise use the type file format

Parameters

filename	- the file name to save the 3d scene
type	- the pre-defined file format. It can be 3D scene format like "wrl"/"iv" or the well-known pixmap formats like "pnd", "jpg" etc

Definition at line 1059 of file StDraw3D.cxx.

References Pad(), and Viewer().

Referenced by Print().

void StDraw3D::SetBkColor ( Color_t newBkColor )

virtual

Set the ROOT color as the widget background.

Parameters

newBkColor - ROOT index of the color to paint the widget backgorund (

See Also: http://root.cern.ch/root/html/TColor.html )

Definition at line 447 of file StDraw3D.cxx.

References Pad().

Referenced by Ed(), and EdMu().

void StDraw3D::SetDetectors ( const char * nameDetectors )

virtual

Set the list of the detector names to be used as the event "background".

Parameters

nameDetectors

- a comma separated list of the OpenInventor files with no extension
For all names on the list one should provide the iv file with the "iv" extension:

<name>.iv

Definition at line 362 of file StDraw3D.cxx.

void StDraw3D::SetDrawOption ( Option_t * options = "" )

virtual

Set the varous drawing option. The method passes the input options to TQtCoinWidget::SetDrawOption method.

Parameters

options	- [ <shape1> [, shape2 [, . . . shape-n] - a comma separated list of the OpenInventor files with no extension \| { parameter : value } - enclosed into the curly brackets a pair "parameter : value"
-	{ file : file.iv } - the iv file defining the top level OpenInventor node. For example, it can be useful to customize the entire screen rotation / animation )
-	{ footer: text } - define the image footer (caption)
-	{ record : true \| false } - toogle the "record scene" option
-	{ save : filename } - save the current image into file
-	{ screen : full } - turn the "fullscreen view" option
-	{ view : all } - zoom the image in/out to make sure it fits the entire screen

For example, the ROOT macro:

void Draw3D()
{
   gROOT->Macro("Load.C");  //< Load STAR framework shared libraries
   gEventDisplay->Draw3DTest(); //< Invoke the built-in rendering test
   gEventDisplay->SetDrawOption("{file:rotation.iv}");//< Add rotation to the scene
   gEventDisplay->SetFooter("STAR Event Display Example");
   gEventDisplay->Print("Draw3DTest.wrl"); //< Save the 3D scene into the file
   gEventDisplay->SetDrawOption("{view:all}"); // zoom the scene in/out to fit the entire screen
}

is to produce the animated image:

Animated version of the test image

See Also: Draw3D.C

Definition at line 1097 of file StDraw3D.cxx.

References Viewer().

Referenced by Draw3D(), EdMu(), mae(), and SetFooter().

void StDraw3D::SetFooter ( const char * footer )

virtual

Set the footer (caption) defined by the input footer text string.

Parameters

footer - the text string to be drawn onto the bottom of the 3D scene image. The string may contain sevral lines separated by \n end-of-line symbol

Definition at line 1603 of file StDraw3D.cxx.

References SetDrawOption().

Referenced by Draw3D().

const StDraw3DStyle & StDraw3D::Style ( EDraw3DStyle type ) const

virtual

Return the reference to the predefined StDraw3DStyle object.

Parameters

type	- The pre-defined type we want to get the reference to

Definition at line 482 of file StDraw3D.cxx.

Referenced by AddStyle(), addTracks(), StuDraw3DEvent::Hit(), StuDraw3DEvent::Hits(), Line(), Points(), StuDraw3DEvent::Track(), StuDraw3DMuEvent::Track(), StuDraw3DMuEvent::TrackInOut(), StuDraw3DEvent::TrackInOut(), StuDraw3DMuEvent::Tracks(), and StuDraw3DEvent::Vertex().

TObject * StDraw3D::Tower	(	float	radius,
		float	lambda,
		float	lambda1,
		float	lambda2,
		float	phi,
		float	dphi,
		Color_t	col,
		Style_t	sty,
		Size_t	siz
	)

virtual

This is an overloaded member function, provided for convenience.

The method creates one "tower" object (see:  http://root.cern.ch/root/html/TTRAP.html#TTRAP:description )

Parameters

radius	- the distance between the base of the tower and the "origin". It can be either the distance from the Z-axis for the kBarrelStyle or the distance from the xy plane for EndCap tower (default) style, for example.
lambda	- the tower direction (in rads). It is the angle in respect of the Y-axis for kBarrelStyle tower or Z-axis.
lambda1	- the tower near edge (in rads)
lambda2	- the tower far edge (in rads)
phi	- the angle (in rads) in XY plane against of the Ox
dphi	- the non-negative angle "length" of the tower
col	- ROOT fill color ( see: http://root.cern.ch/root/html/TAttFill.html )
sty	- ROOT fill style ( see: http://root.cern.ch/root/html/TAttFIll.html ) The default style is "Endcap". One can add `kBarrelStyle` constant to ROOT style to get the "barrel" style tower = 0 - solid color, 4001 - wireframe view, 4001 ... 4100 - solid translucent color from 99% transparent to 100% opaque
siz	- the height of the tower. It can be used to visualize the energy deposit or for any other reason.

Returns

- a pointer to the ROOT "view" TVolume created to render the input parameters.

Explanation of the StDraw::Tower(...) method parameters ("barrel" style )
XZ plane view	XY plane view

Explanation of the StDraw::Tower(...) method parameters (default "endcap" style )
XZ plane view	XY plane view

Definition at line 1425 of file StDraw3D.cxx.

Referenced by Draw3DTest(), StuDraw3DMuEvent::EmcHit(), StuDraw3DEvent::EmcHit(), StuDraw3DMuEvent::Endcaps(), and Tower().

TObject * StDraw3D::Tower	(	float	radius,
		float	lambda,
		float	phi,
		float	dlambda,
		float	dphi,
		Color_t	col,
		Style_t	sty,
		Size_t	siz
	)

virtual

Draw the TTRAP object suitable to represent the calorimeter data.

The method creates one "tower" object (see:  http://root.cern.ch/root/html/TTRAP.html#TTRAP:description )

Parameters

radius	- the distance between the base of the tower and the "origin". It can be either the distance from the Z-axis for the kBarrelStyle or the distance from the xy plane for EndCap tower (default) style, for example.
lambda	- the tower direction (in rads). It is the angle in respect of the Y-axis for kBarrelStyle tower or Z-axis.
phi	- the angle (in rads) in XY plane against of the Ox
dlambda	- the non-negative angle "width" of the tower.
dphi	- the non-negative angle "length" of the tower
col	- ROOT fill color ( see: http://root.cern.ch/root/html/TAttFill.html )
sty	- ROOT fill style ( see: http://root.cern.ch/root/html/TAttFIll.html ) The default style is "Endcap". One can add `kBarrelStyle` constant to ROOT style to get the "barrel" style tower = 0 - solid color, 4001 - wireframe view, 4001 ... 4100 - solid translucent color from 99% transparent to 100% opaque
siz	- the height of the tower. It can be used to visualize the energy deposit or for any other reason.

Returns

- a pointer to the ROOT "view" TVolume created to render the input parameters.

Explanation of the StDraw::Tower(...) method parameters ("barrel" style )
XZ plane view	XY plane view

Explanation of the StDraw::Tower(...) method parameters (default "endcap" style )
XZ plane view	XY plane view

Definition at line 1374 of file StDraw3D.cxx.

References Tower().

TObject * StDraw3D::Tower	(	float	radius,
		const StarRoot::StEta &	eta,
		float	phi,
		float	dphi,
		Color_t	col,
		Style_t	sty,
		Size_t	siz
	)

virtual

This is an overloaded member function, provided for convenience.

The method creates one "tower" object (see:  http://root.cern.ch/root/html/TTRAP.html#TTRAP:description )

Parameters

radius	- the distance between the base of the tower and the "origin". It can be either the distance from the Z-axis for the kBarrelStyle or the distance from the xy plane for Endcap towers (default), for example.
eta	(eta,dEta) - the tower direction eta and width dEta (in eta units). (See: http://en.wikipedia.org/wiki/Pseudorapidity )
phi	- the angle (in rads) in XY plane against of the Ox
dphi	- the non-negative angle "length" of the tower
col	- ROOT fill color ( see: http://root.cern.ch/root/html/TAttFill.html )
sty	- ROOT fill style ( see: http://root.cern.ch/root/html/TAttFill.html ) one can add kBarrelStyle constant to ROOT style to get the "barrel" style tower = 0 - solid color, 4001 - wireframe view, 4001 ... 4100 - solid translucent color from 99% transparent to 100% opaque
siz	- the height of the tower. It can be used to visualize the energy deposit or for any other reason.

Returns

- a pointer to the ROOT "view" TVolume created to render the input parameters.

Explanation of the StDraw::Tower(...) method parameters ("barrel" style )
XZ plane view	XY plane view

Explanation of the StDraw::Tower(...) method parameters (default "endcap" style )
XZ plane view	XY plane view

Definition at line 1580 of file StDraw3D.cxx.

References Tower().

void StDraw3D::Update ( bool asap = false )

virtual

Render all items from the current display list onto the screen and refesh the screen immiately if asap is defined.

Parameters

asap	= (defaul:false) force the sysysten to refresh the screen woith the fresh image. This option can significantly slow dowbn the rednereing if abused.

Definition at line 1109 of file StDraw3D.cxx.

References Pad().

Referenced by Animate(), Clear(), and Draw3DTest().

TVirtualViewer3D * StDraw3D::Viewer ( ) const

Returns: The TVirtualViewer3D viewer pointer used to render into.

Definition at line 349 of file StDraw3D.cxx.

References Viewer().

Referenced by Clear(), Save(), SetDrawOption(), and Viewer().

The documentation for this class was generated from the following files:

StarRoot/StDraw3D.h
StarRoot/StDraw3D.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
