Class StuDraw3DMuEvent - to draw the StMuDst primitives like StMuTrack as 3D points and 3D lines decorated with the STAR detector geometry. More...

#include <StuDraw3DMuEvent.h>

Inheritance diagram for StuDraw3DMuEvent:

Public Member Functions
	StuDraw3DMuEvent (const char detectorName="TPC", TVirtualPad pad=0)
	StuDraw3DMuEvent( const char detectorName,TVirtualPad pad) ctor. More...

virtual	~StuDraw3DMuEvent ()
	~StuDraw3DMuEvent( ) dtor More...

virtual void	Tracks (StTrackType type=global)
	Add all tracks of the given type from the current event to the display list. More...

virtual TObject *	Track (const StMuTrack &track, Color_t col, Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add track to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	Track (const StMuTrack &track, EDraw3DStyle sty=kPrimaryTrack)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	TrackInOut (const StMuTrack &track, Bool_t in, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add the in point of the given track to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	TrackInOut (const StMuTrack &track, EDraw3DStyle sty=kUsedHit, Bool_t in=kTRUE)
	This is an overloaded member function, provided for convenience. More...

virtual void	Endcaps (Style_t sty=0)
	Add the endcap towers to the list to display. More...

virtual void	Endcaps (const StMuEmcCollection &e, Style_t sty=0)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	EmcHit (Int_t emcHitsSoftId, Color_t col, Style_t sty, Size_t siz, const char *detIdt="bemc")
	Add EMC hit defined emcHitsSoftId to the display list with the col color sty and size if provided. More...

virtual TObject *	EmcHit (Int_t emcHitsSoftId, float energy, const char *detIdt="bemc")

template<class Predicate >
TObject *	EmcHit (Int_t emcHitsSoftId, const Predicate &sty, const char *detIdt="bemc")

	ClassDef (StuDraw3DMuEvent, 0)

Public Member Functions inherited from StDraw3D
	StDraw3D (const char detectorName="TPC", TVirtualPad pad=0)
	StDraw3D( const char detectorName,TVirtualPad pad) ctor. More...

	StDraw3D (TVirtualViewer3D viewer, TVirtualPad pad)
	This is an overloaded member function, provided for convenience. More...

virtual const StDraw3DStyle &	AddStyle (EDraw3DStyle type, Color_t col, Style_t sty, Size_t siz)
	Map the predefined style type to the ROOT graphical attributes col color sty style siz size. More...

TVirtualPad *	Pad () const

TVirtualViewer3D *	Viewer () const

virtual void	Clear (Option_t *opt="update")
	Remove all objects from the list and update the screen if opt is "update".

virtual TObject *	Draw (TObject o, const char option="")

virtual const TString &	DetectorNames () const

virtual void	SetDetectors (const char *nameDetectors)
	Set the list of the detector names to be used as the event "background". More...

virtual void	AddDetectors (const char *nameDetectors)
	Append the detector names to the list of the event "background" shapes. More...

virtual void	Draw (Option_t *option="")

virtual const StDraw3DStyle &	Style (EDraw3DStyle type) const
	Return the reference to the predefined StDraw3DStyle object. More...

virtual StDraw3DStyle &	Style (EDraw3DStyle type)

virtual void	SetBkColor (Color_t newBkColor)
	Set the ROOT color as the widget background. More...

virtual TObject *	Draw3D (int n, const float *xyz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Draw3D (int n, const double *xyz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const float *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const double *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (int n, const float *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add n 3D coordinates from the xyz array to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	Points (int n, const double *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< float > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< double > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< float > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Points (const std::vector< double > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Point (float x, float y, float z, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))

virtual TObject *	Point (float x, float y, float z, EDraw3DStyle sty)

virtual TObject *	Line (int n, const double *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (float x0, float y0, float z0, float x1, float y1, float z1, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const float *xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	Add n connected points defined by the "xyz" array of the 3D coordinates to the display list with the col color, sty style, and siz size if provided. More...

virtual TObject *	Line (const std::vector< float > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< double > &xyz, Color_t col=Color_t(-1), Style_t sty=Style_t(-1), Size_t siz=Size_t(-1))
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const float *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (int n, const double *xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< float > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Line (const std::vector< double > &xyz, EDraw3DStyle sty)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Tower (float radius, float lambda, float lambda1, float lambda2, float phi, float dphi, Color_t col, Style_t sty, Size_t siz)
	This is an overloaded member function, provided for convenience. More...

virtual TObject *	Tower (float radius, float lambda, float phi, float dlambda, float dphi, Color_t col, Style_t sty, Size_t siz)
	Draw the TTRAP object suitable to represent the calorimeter data. More...

virtual TObject *	Tower (float radius, const StarRoot::StEta &eta, float phi, float dphi, Color_t col, Style_t sty, Size_t siz)
	This is an overloaded member function, provided for convenience. More...

virtual void	Joint (StDraw3D *dsp)

virtual void	SetModel (TObject *model)

virtual void	SetComment (const char *cmnt)

virtual void	AddComment (const char *cmnt)

virtual void	Print (const char *filename) const
	Save the current 3D scene using "wrl" file format. More...

virtual void	Print (const char filename, const char type) const
	This is an overloaded member function, provided for convenience. More...

virtual void	Save (const char filename, const char type="png") const
	This is an overloaded member function, provided for convenience. More...

virtual void	Update (bool asap=false)
	Render all items from the current display list onto the screen and refesh the screen immiately if asap is defined. More...

virtual void	Modified ()

virtual void	UpdateModified ()

virtual void	SetDrawOption (Option_t *option="")
	Set the varous drawing option. The method passes the input options to TQtCoinWidget::SetDrawOption method. More...

virtual void	SetFooter (const char *footer)
	Set the footer (caption) defined by the input footer text string. More...

virtual void	Animate ()
	Animate the viewer from the gdb session. More...

void	Draw3DTest ()
	The built-in quick test to check the application environment and test the basic methods. More...

Static Public Member Functions
static StuDraw3DMuEvent *	Display ()

Static Public Member Functions inherited from StDraw3D
static void	ShowTest ()

static void	ShowDetectorTest (const char *detectorName="StarDetectorUnfolding")

Protected Member Functions
EEmcGeomSimple *	EndcapGeom ()

Protected Member Functions inherited from StDraw3D
virtual void	UpdateViewer (TVirtualPad *pad=0)

Detailed Description

Class StuDraw3DMuEvent - to draw the StMuDst primitives like StMuTrack as 3D points and 3D lines decorated with the STAR detector geometry.

\author Valery Fine (fine@bnl.gov)
\date 01/08/2009
\sa  EdMu.C

 Class StuDraw3DMuEvent provides the simple way to visualize the StMuDst event
 primitivies in 3D quickly against of the STAR detector
 geometry.
 One instance of the class is instantiated as soon as the class shared library
 is loaded.
 This allows to use the class object (invoke the class methods) with one C++ statement.
 This  is to allow creating the 3D views "on fly",
 for example, from the GNU debugger (gdb) command prompt
\n Try:

*   > ln -s  $STAR/StRoot/macros/.rootrc
*   > root.exe $STAR/StRoot/macros/mudst/draw3DTracks.C
*

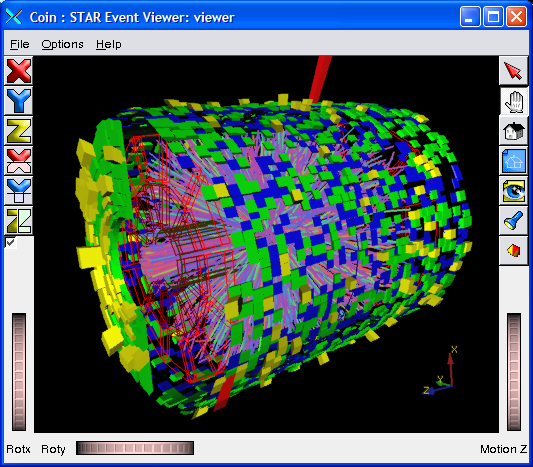

to read some MuDst ROOT file and get the pictire below: ///

You need to install the Adobe Reader version 9 or higher /// /// to be able to "click and see" the interactive ( zoom, pan, select / highlight the pieces, etc ) 3D image also ///

/// ///

///

Definition at line 72 of file StuDraw3DMuEvent.h.

Constructor & Destructor Documentation

StuDraw3DMuEvent::StuDraw3DMuEvent	(	const char *	detectorName = `"TPC"`,
		TVirtualPad *	pad = `0`
	)

StuDraw3DMuEvent( const char *detectorName,TVirtualPad *pad) ctor.

     \param detectorName (default = "TPC") - the names of the STAR detectors
                                             to be used as the "event primitives" background.
                           The detectorName is a comma separated list of the OpenInventor files
                           with no extension\n
                           For all names on the list one should provide the iv file with
                           the "iv" extension:\n

<name>.iv

Parameters

detectorName = 0 - no detector geometry is to be rendered

pad

(default = 0) - The ROOT TPad to be used to render the event wireframe view

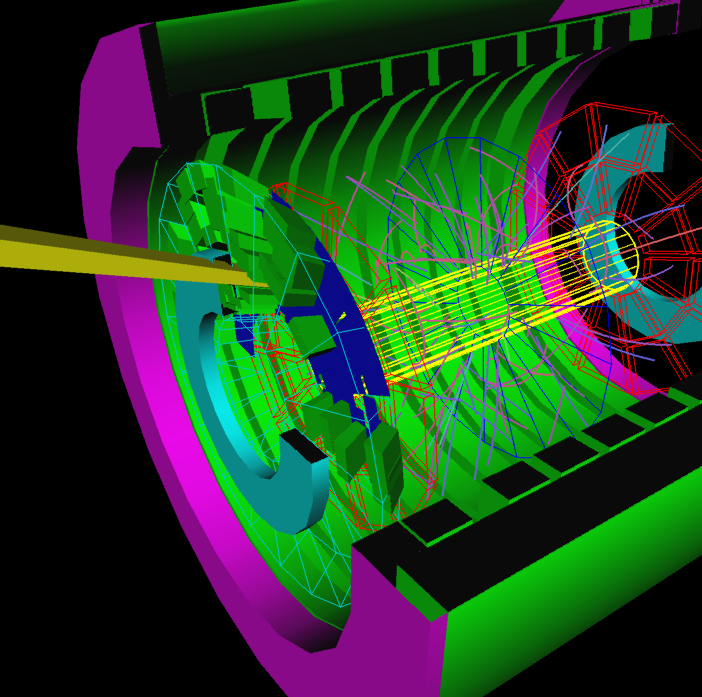

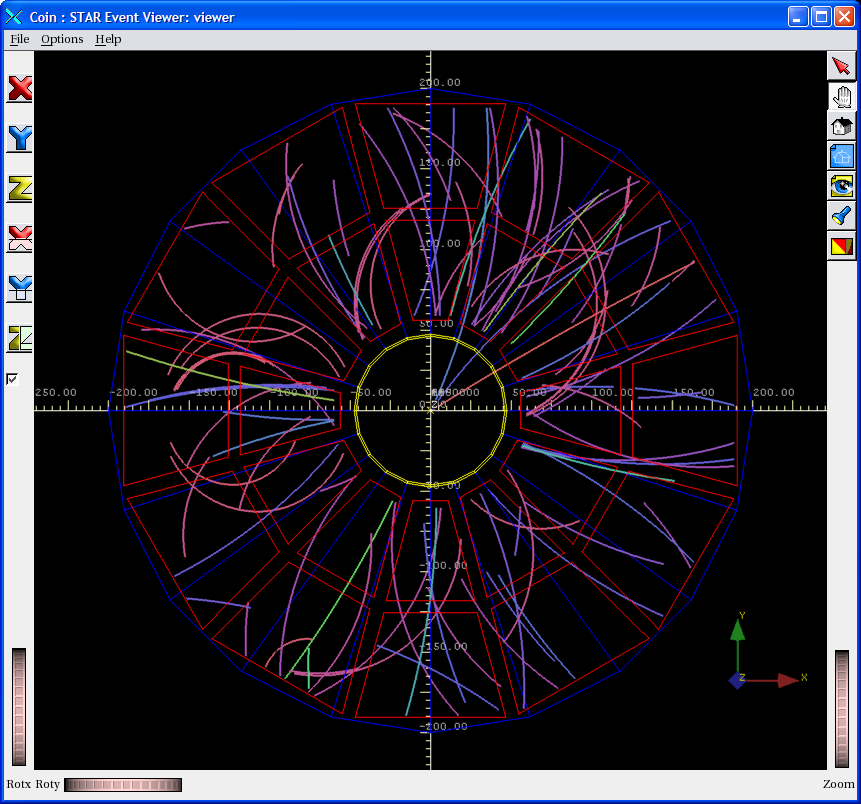

Event over detector geometry	Event with no detector geometry

Note: If this is the first instance of the class then the global pointer to the current "display" is to be set too

See Also: Display(); StRoot/macros/mudst/draw3DTracks.C

Definition at line 40 of file StuDraw3DMuEvent.cxx.

StuDraw3DMuEvent::~StuDraw3DMuEvent ( )

virtual

~StuDraw3DMuEvent( ) dtor

Reset the global gMuEventDisplay pointer to the current display if the current display is this

Definition at line 54 of file StuDraw3DMuEvent.cxx.

Member Function Documentation

StuDraw3DMuEvent * StuDraw3DMuEvent::Display ( )

static

Returns: The pointer to the current instance of the StuDraw3DMuEvent class to visualize StMuDst components

Definition at line 323 of file StuDraw3DMuEvent.cxx.

TObject * StuDraw3DMuEvent::EmcHit	(	Int_t	emcHitsSoftId,
		Color_t	col,
		Style_t	sty,
		Size_t	siz,
		const char *	detId = `"bemc"`
	)

virtual

Add EMC hit defined emcHitsSoftId to the display list with the col color sty and size if provided.

Parameters

emcHitsSoftId	- StEmcRawHit soft ID that one wants to be present as the ROOT TTRAP object with ROOT visual attributes col sty siz
col	- Tower color ( see: http://root.cern.ch/root/html/TAttFill.html )
sty	- Tower style ( see: http://root.cern.ch/root/html/TAttFill.html )
siz	- Tower size (cm) (

See Also: StDraw3D::Tower( float radius, const StarRoot::StEta &eta,float phi,float dphi, Color_t col,Style_t sty, Size_t siz) )

Returns: - a pointer to the ROOT "view" TObject of emcHit model

Definition at line 288 of file StuDraw3DMuEvent.cxx.

References StDraw3D::Tower().

Referenced by addEmcHits().

void StuDraw3DMuEvent::Endcaps ( Style_t sty = 0 )

virtual

Add the endcap towers to the list to display.

Parameters

sty	- is the ROOT TAttFill style: =0 - solid view, =4001 - "wireframe" view, =4002-4100 - solid semitransparent view The first event from Run 9046031 pProduction2008 produced by EdMu.C macros

Definition at line 194 of file StuDraw3DMuEvent.cxx.

References StMuDst::muEmcCollection().

Referenced by addEmcHits().

void StuDraw3DMuEvent::Endcaps	(	const StMuEmcCollection &	emc,
		Style_t	sty = `0`
	)

virtual

This is an overloaded member function, provided for convenience.

Parameters

emc - the reference to the collection (singletone) of the emc properties.

sty

- is the ROOT TAttFill style:
=0 - solid view,
=4001 - "wireframe" view,
=4002-4100 - solid semitransparent view

Endcap towers and tpc tracks rendering example

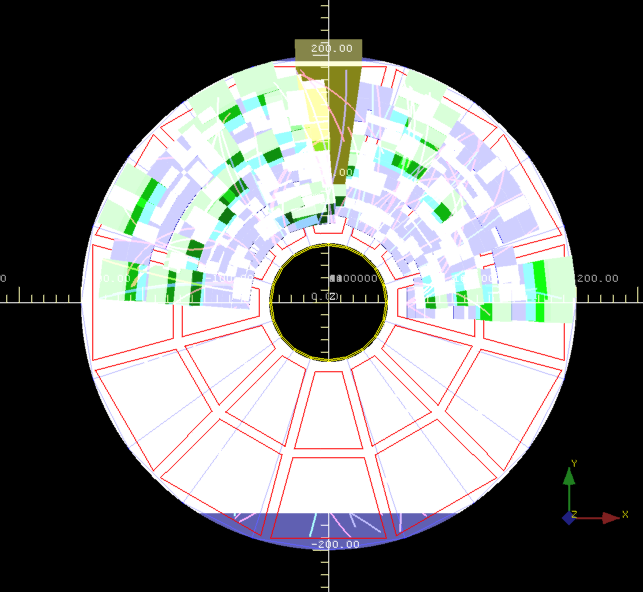

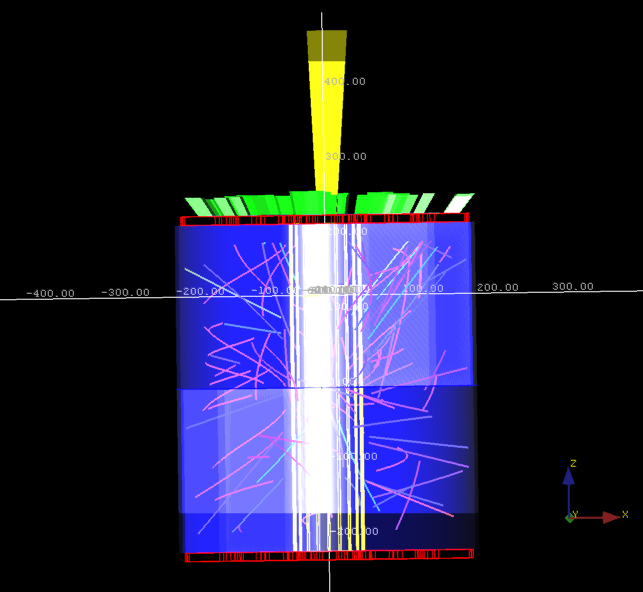

XY plane view	ZX plane view

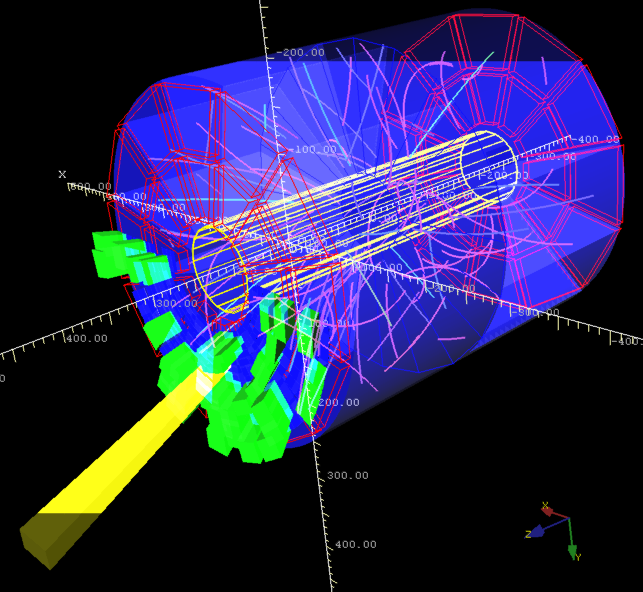

YZ plane view	3D plane view

Definition at line 234 of file StuDraw3DMuEvent.cxx.

References EEmcGeomSimple::getEtaHalfWidth(), EEmcGeomSimple::getEtaMean(), EEmcGeomSimple::getPhiHalfWidth(), EEmcGeomSimple::getPhiMean(), and StDraw3D::Tower().

TObject * StuDraw3DMuEvent::Track	(	const StMuTrack &	track,
		Color_t	col,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

Add track to the display list with the col color, sty style, and siz size if provided.

Parameters

track	- reference to the StMuTrack object from StMuDst data structure
col	- ROOT line color ( see: http://root.cern.ch/root/html/TAttLine.html )
sty	- ROOT line style ( see: http://root.cern.ch/root/html/TAttLine.html )
siz	- ROOT line width ( see: http://root.cern.ch/root/html/TAttLine.html )

Returns: - a pointer to the ROOT "view" TObject of track model

Definition at line 111 of file StuDraw3DMuEvent.cxx.

References StMuTrack::helix(), StMuTrack::length(), StDraw3D::Line(), and StMuTrack::outerHelix().

Referenced by addTracks(), Track(), and Tracks().

TObject * StuDraw3DMuEvent::Track	(	const StMuTrack &	track,
		EDraw3DStyle	sty = `kPrimaryTrack`
	)

virtual

This is an overloaded member function, provided for convenience.

Add track to the display list with the sty pre-defined style if provided

Definition at line 126 of file StuDraw3DMuEvent.cxx.

References StMuTrack::globalTrack(), StMuTrack::primaryTrack(), StDraw3D::Style(), and Track().

TObject * StuDraw3DMuEvent::TrackInOut	(	const StMuTrack &	track,
		Bool_t	in,
		Color_t	col = `Color_t(-1)`,
		Style_t	sty = `Style_t(-1)`,
		Size_t	siz = `Size_t (-1)`
	)

virtual

Add the in point of the given track to the display list with the col color, sty style, and siz size if provided.

Parameters

track	- reference to the StMuTrack object from StMuDst data structure
in	flag `true` (default) is to be set to add the track `in` point `false` is to be set to add the track `out` point to the list
col	- ROOT marker color (see: http://root.cern.ch/root/html/TAttMarker.html )
sty	- ROOT marker style (see: http://root.cern.ch/root/html/TAttMarker.html )
siz	- ROOT marker size (see: http://root.cern.ch/root/html/TAttMarker.html )

Returns: - a pointer to the ROOT "view" TObject of star/end point of track model

Definition at line 152 of file StuDraw3DMuEvent.cxx.

References StMuTrack::firstPoint(), and StMuTrack::lastPoint().

Referenced by TrackInOut().

TObject * StuDraw3DMuEvent::TrackInOut	(	const StMuTrack &	track,
		EDraw3DStyle	sty = `kUsedHit`,
		Bool_t	in = `kTRUE`
	)

virtual

This is an overloaded member function, provided for convenience.

Parameters

track	- reference to the StMuTrack object from StMuDst data structure
in	- flag `true` (default) is to be set to add the track `in` point `false` is to be set to add the track `out` point to the list
sty	- EDraw3DStyle pre-defined visual style of this object.
